Rotogravure yellow & black warning tape printing machine


照片 160

1.Main Technical Parameters

A. Model (2 colors 4 units)	1000	Remarks
B. Printing Cylinder Dia (mm)	100-380	External Dia
C. Printing Width (mm)	1030/1000	Max/Effective
D. Printing Speed (m/min)	10-60(OPP/PET) 10-40(Thick film)
E. Register Precision (mm)	≤0.15
F. Unwinding Dia (mm)	600	Duplex
G. Rewinding Dia (mm)	600	Duplex
H. Tension Control Range (kg)	2-20
I. Drying Method	Electric-heating
J. Total Power (kw)	50
K. Weight (kg)	4000
L. Overall Dimension (M)	6.52.72.7	Removable Transport

2.Comprehensive Description

This model is specially designed to print a variety of self-adhesive tapes. It uses automatic web guide unwinding, full-coated printing, IR drying. It has less investment, high returns, and easy operation.

3. Product Features

(1) Single station unwind with web guide device for large diameter film rolls

(2) Helical laser engraving plate, full-coated printing

(3) IR heating, hot circulating + cold air drying

(4) Manual tension control and color registration

(5) Rotating duplex station rewinding, non-stop reloading

4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.

2. We provide customized manufacture according to customer demand.

3. manufactured in accordance with European CE safety standards.

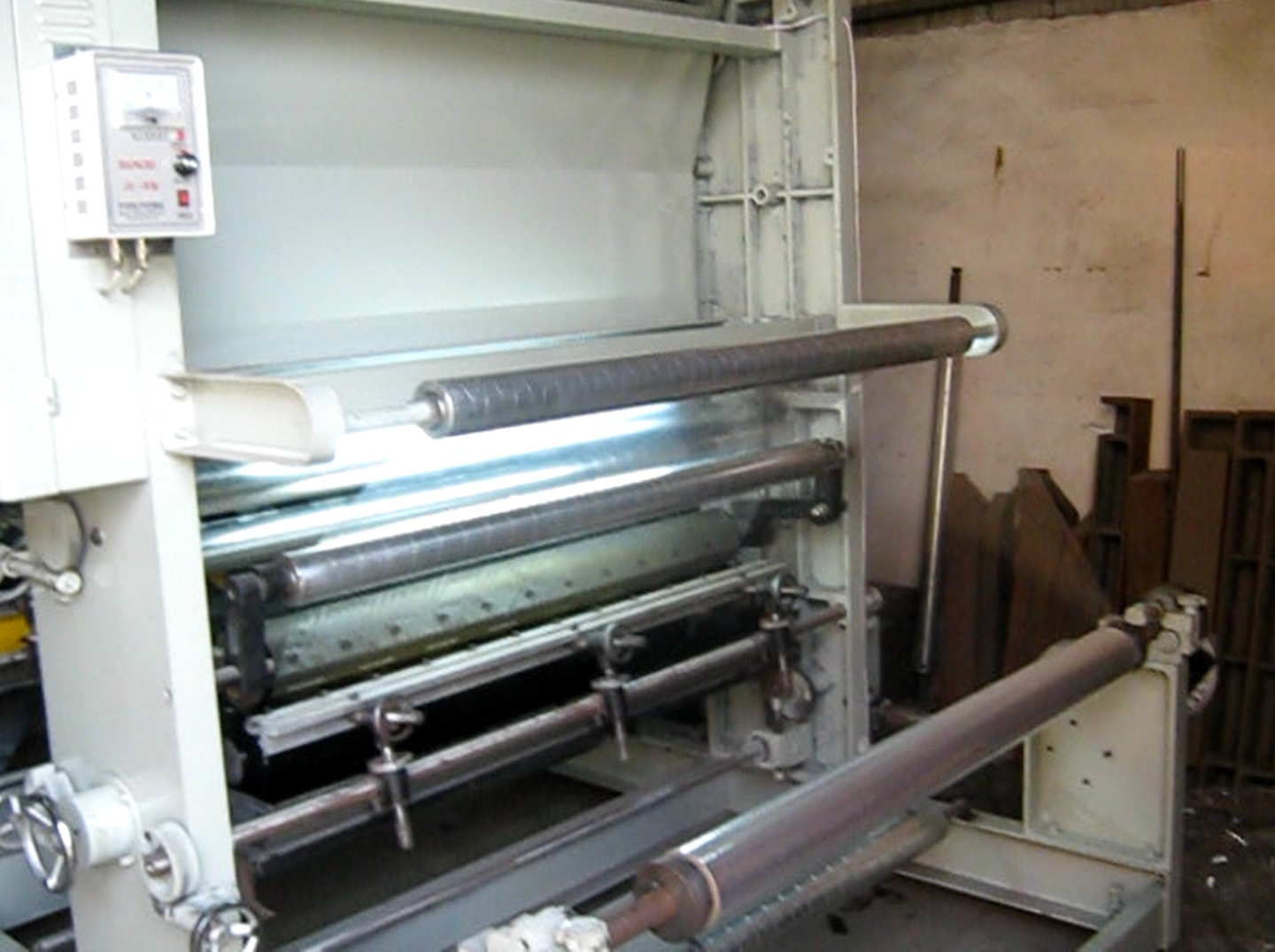

A. Single station unwind with web guide device for large diameter film rolls:

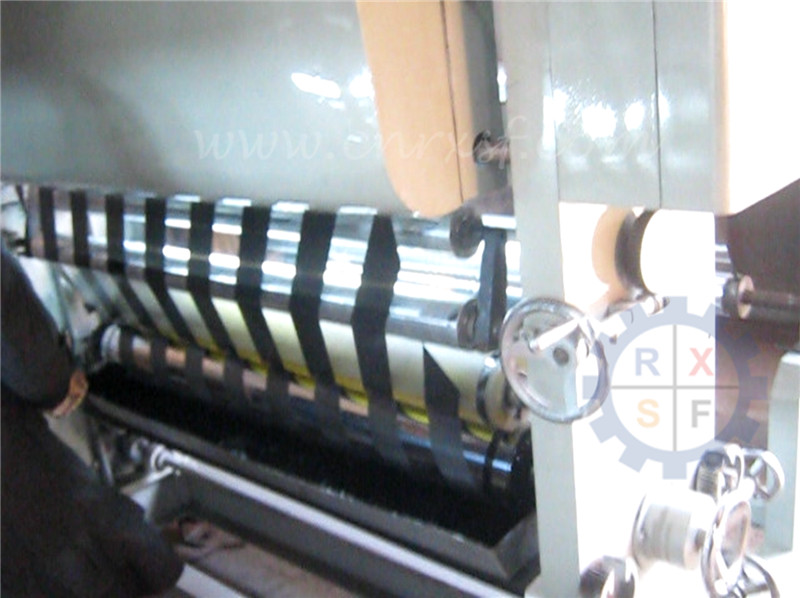

B. Helical laser engraving plate, full-coated printing:

第一印组

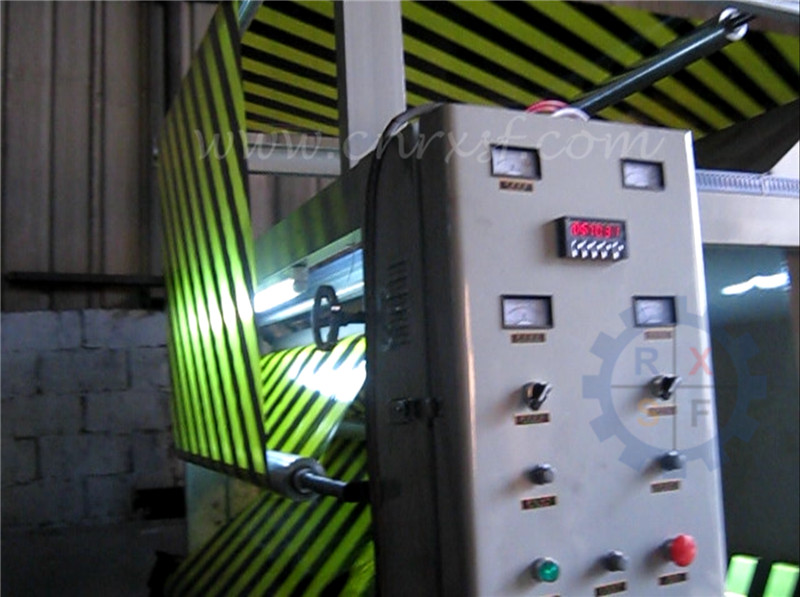

C. IR heating, hot circulating + cold air drying:

温控面板

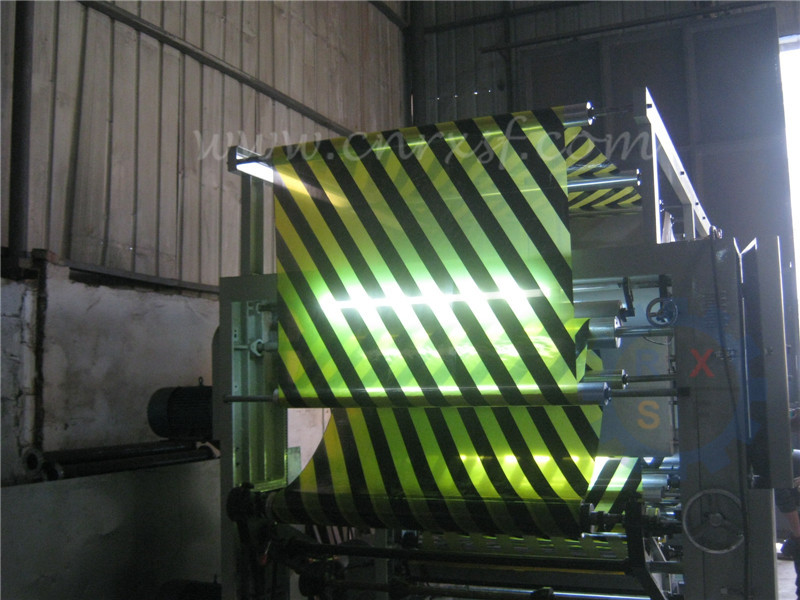

D. Manual tension control and color registration:

照片 167

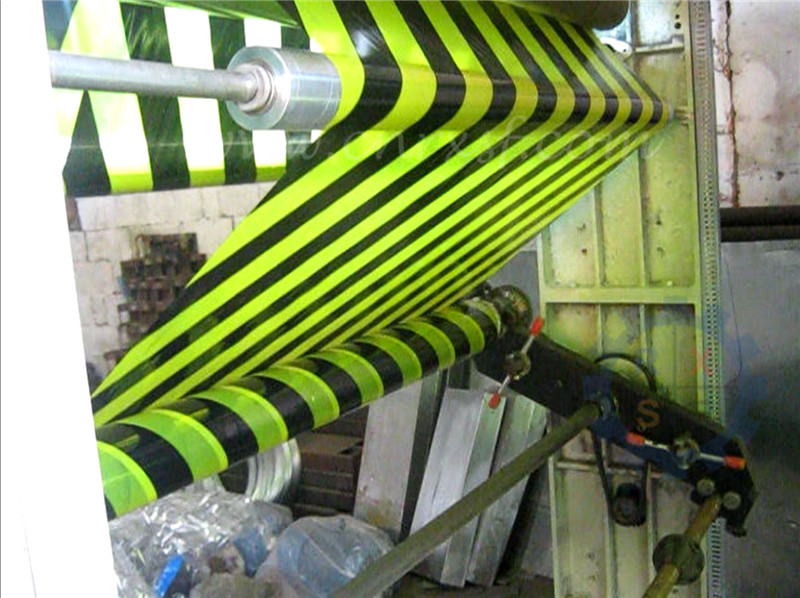

E. Rotating duplex station rewinding, non-stop reloading:

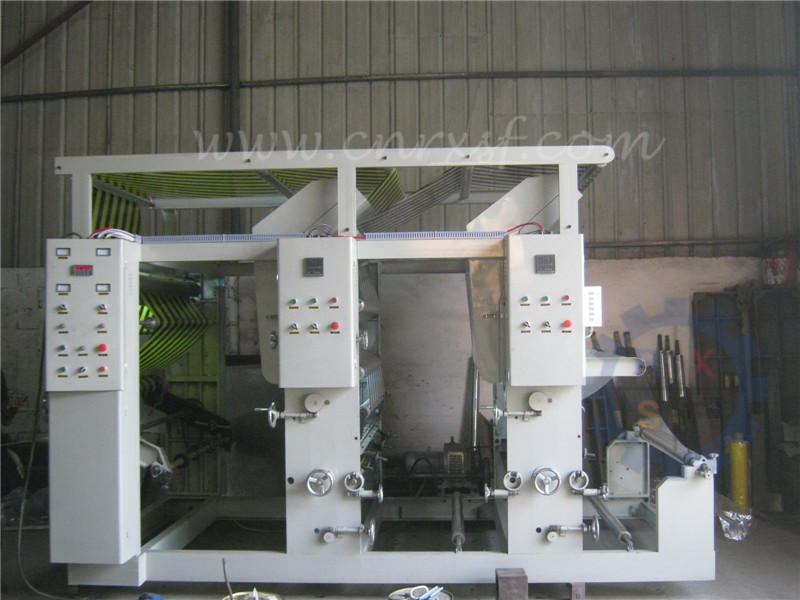

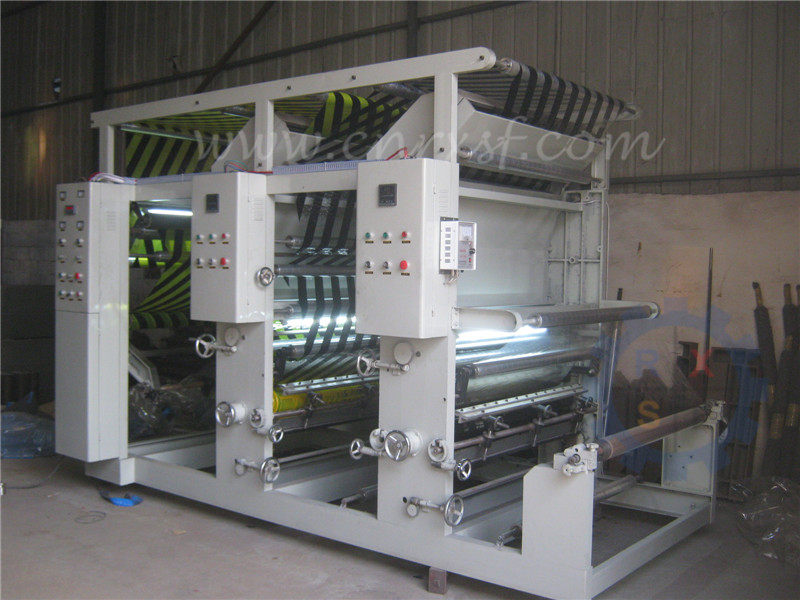

F. 2 color 4 unit overall view:

照片 164

Through this link, to view the video of the machine running: https://youtu.be/IcdTSlBj93Y

5. Packaging and shipping

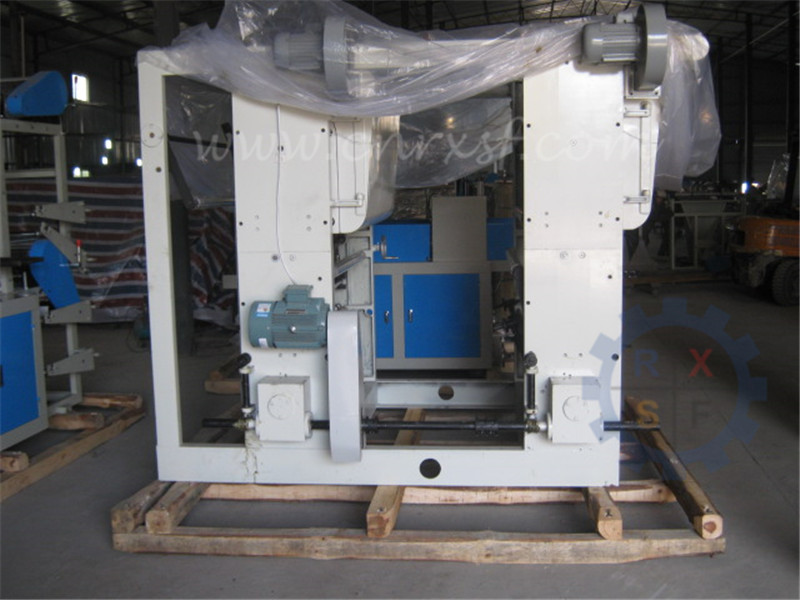

A. Step 1: wooden bottoming:

B. Step 2: apply anti-rust oil, then wrap the plastic film:

C. Step 3: build a wooden case and then put it whole into the container:

6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.

(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.

(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.

(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.

(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.

(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.

(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.

(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;

B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
