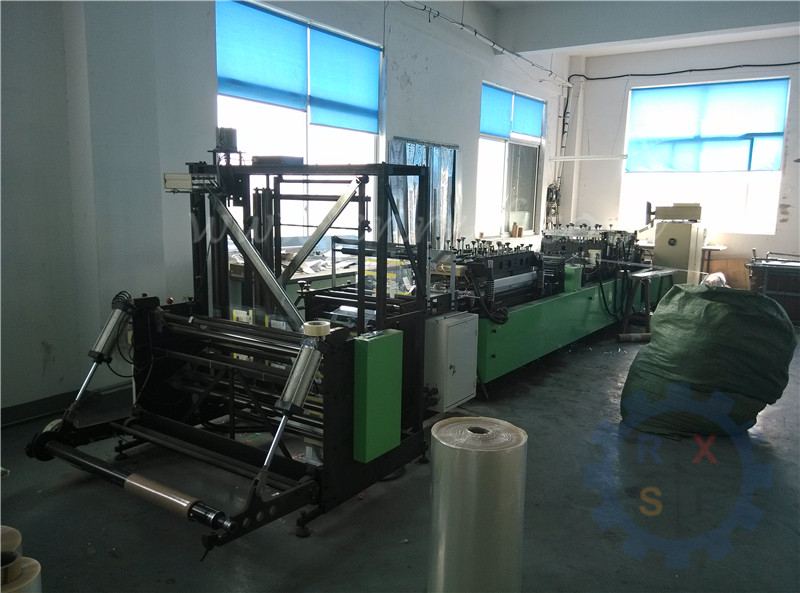

Middle sealing & bottom sealing bag making Machine

loading:	Plastic film Air cylinder lifting Magnetic powder brake Web guide
Sealing:	Hot cutter Temperature cloth Automatic folding Waste edge cutter Automatic punching
Control:	PLC program control LCD Step / servo motors Inverter
Quantity:



Inquire Add to Basket

1. Main Technical Parameters

A. Model	1250-600	Remarks
B. Max roller width (mm)	1250
C. Max bag making width (mm)	600
D. Max bag making length (mm)	30-500 500-1920	Driving multiplied
E. Bag making speed (piece/min)	30-150	Depending on the length of the bag
F. Material feeding speed (m/min)	10-40
G. Air preure (MPa)	0.6
H. Cooling water (L/min)	15
I. Total power (kw)	5.5
J. Total weight (kg)	5000
K. Overall dimension (M)	11.51.91.85

2.Comprehensive Description

Middle sealing & bottom sealing bags making machine, is a multifunctional machine. Its structure is similar to the three-side seal bag making machine, is "folding sealing - bottom sealing" instead of "sides sealing - bottom sealing." We can also use it as the middle sealing bag making machine + bottom sealing bag making machine, because these two functions can be run separately or be run together.

3. Product Features

(1) The whole machine controlled by import PLC control system with Human Machine Interface. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily
(2) Constant auto-tension control for unwinding, LPC edge collecting, AC inverter constant speed control material auto feeding

(3) Material draggin g use double Imported servo-motor system to control

(4) Up-down sealing and pressing use AC inverter driver

(5) Sealing temperature adjusting by PID, non-touch auto control, setting on Human Machine Interface

(6) Automatic Multi-function Pneumatic punching device, auto Edge material cutting and Recover, use static eliminator

(7) Temperature adjustment range: 0~300°C

(8) Auto Counting, pre-set on computer is available

(9) Auto length fixed, Photoelectric-eye tracking system

(10) Punching device: Set continuous, interval, stop, stamping time can be preset

(11) Material Skip Feeding: two to six times available

(12) Batch Conveying, batch quantity can be preset

4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.

2. We provide customized manufacture according to customer demand.

3. Manufactured in accordance with European CE safety standards.

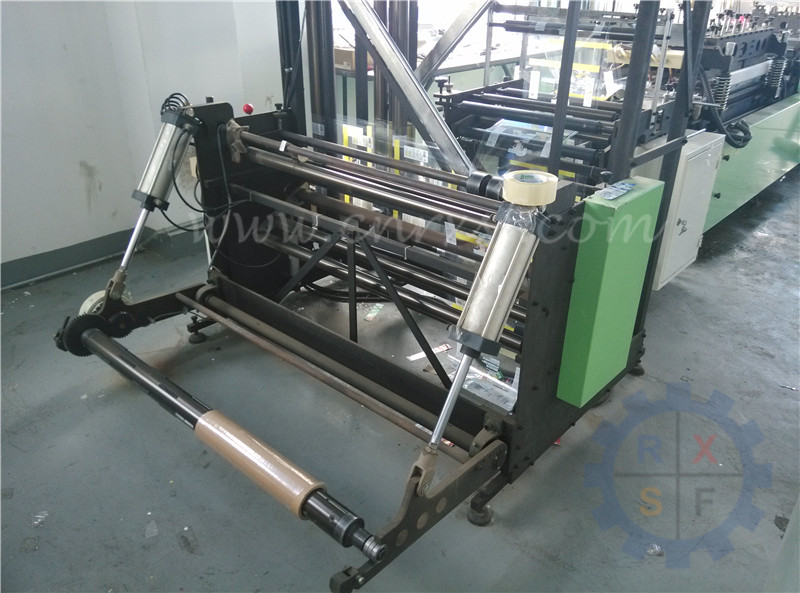

A. Unwinding part adopts lifting air cylinder, magnetic clutch. Constant auto-tension control for auto material feeding:

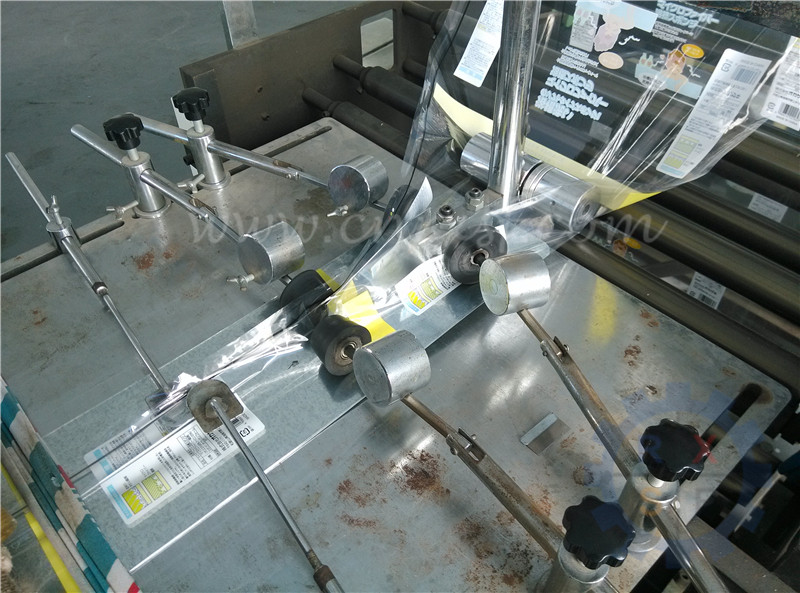

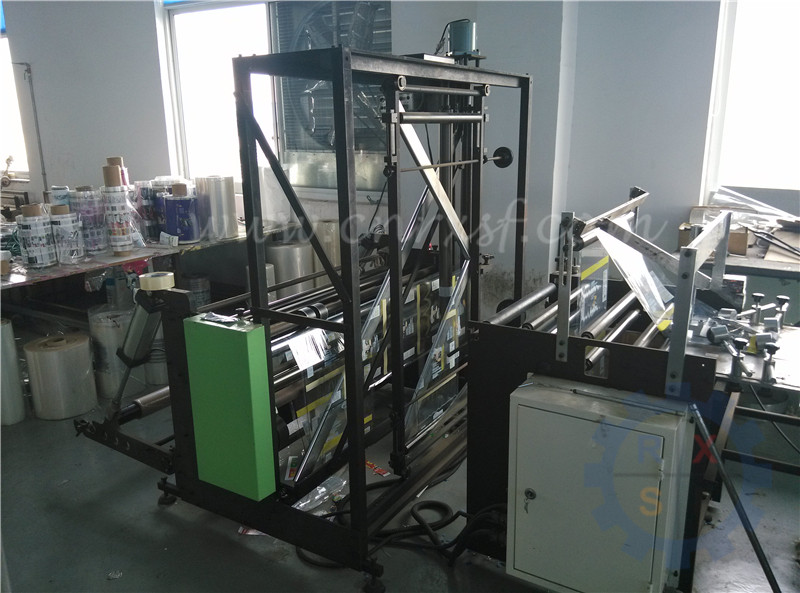

B. Combined tripod can be adjusted as needed to meet a variety of slitting, folding, turning:

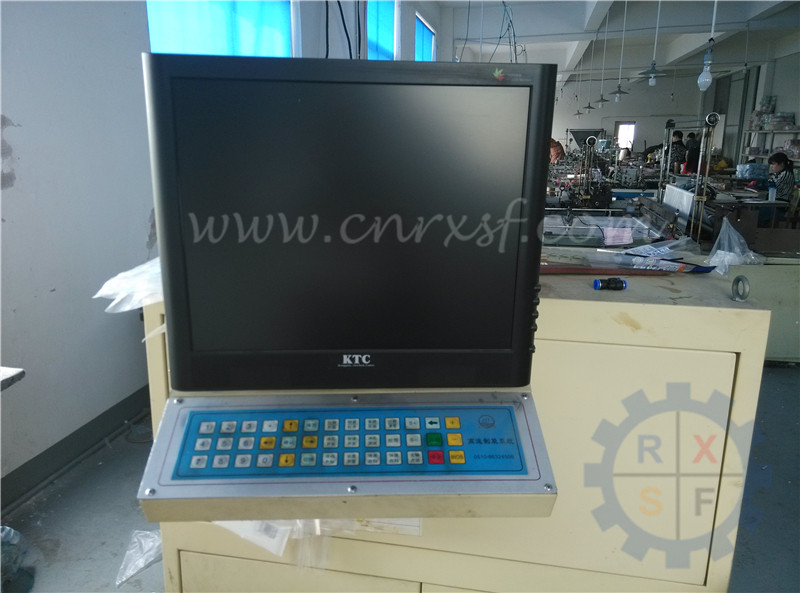

C. PLC programming control, can be set as needed:

IMG_20140429_102650

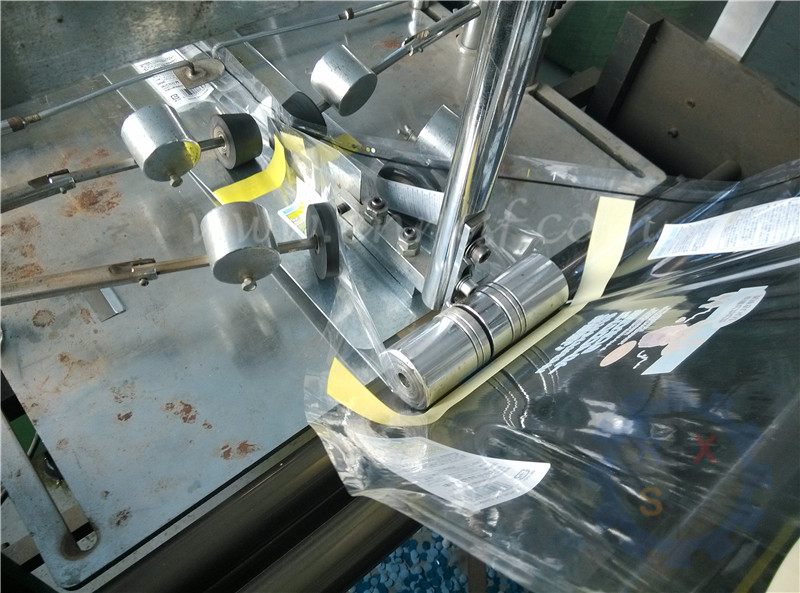

D. Automatic flattening - folding device can be adjusted manually as needed:

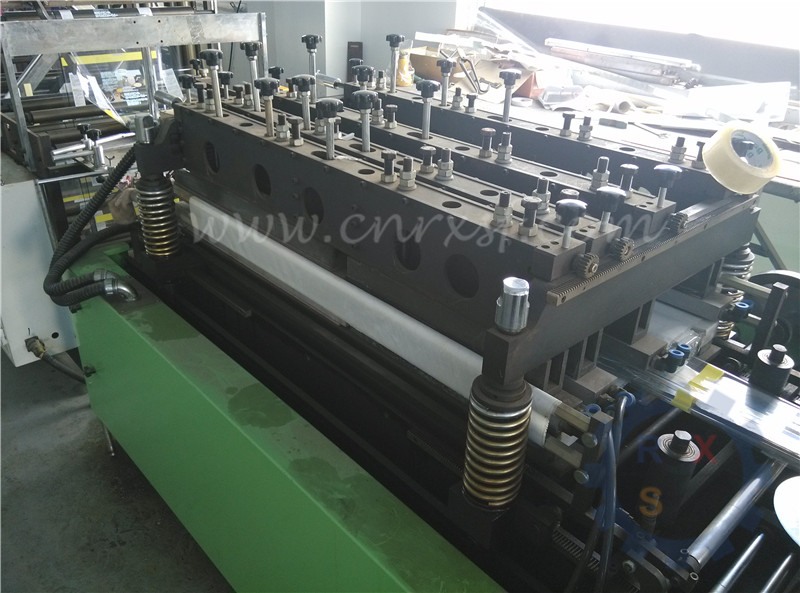

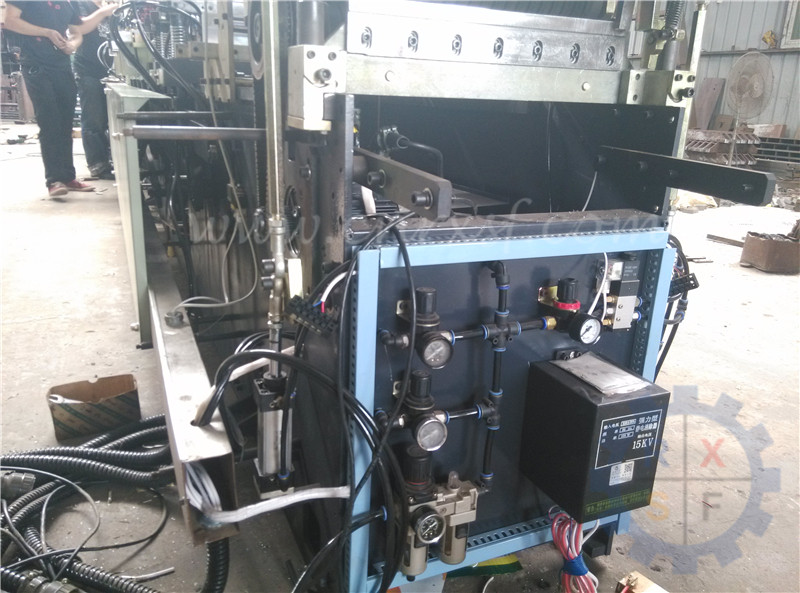

E. Up-down sealing and pressing use AC inverter driver, sealing temperature adjusting by PID ( Temperature adjustment range: 0~300°C ), non-touch auto control, setting on Human-Machine Interface:

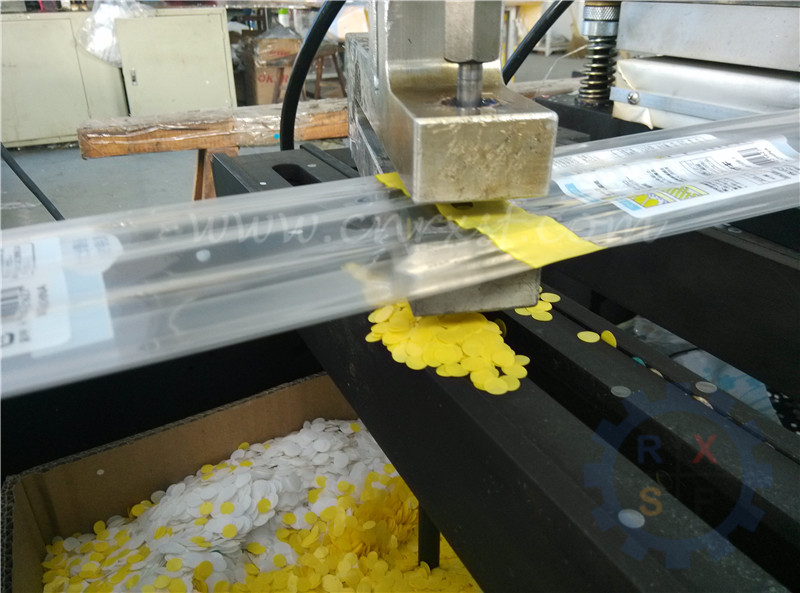

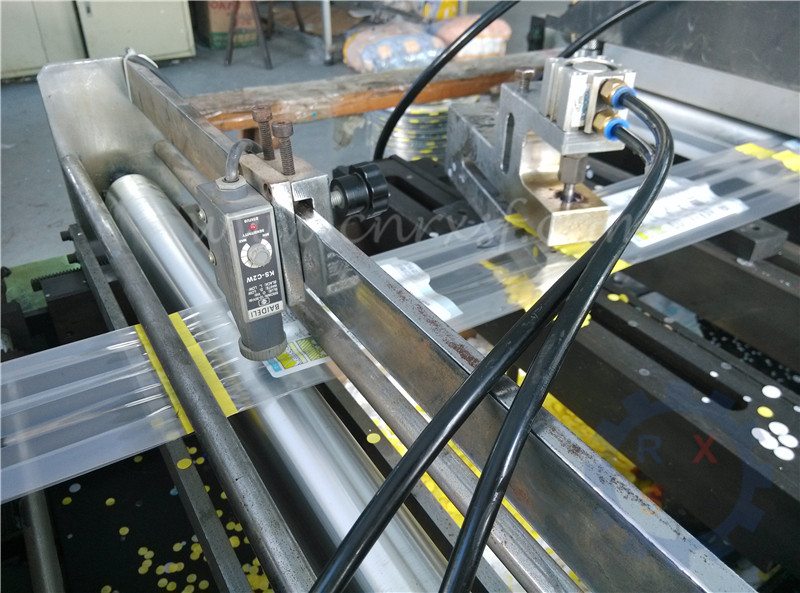

F. Auto length fixed, Photoelectric-eye tracking system. Automatic Multi-function Pneumatic punching device. Continuous, interval, stop, stamping time can be preset:

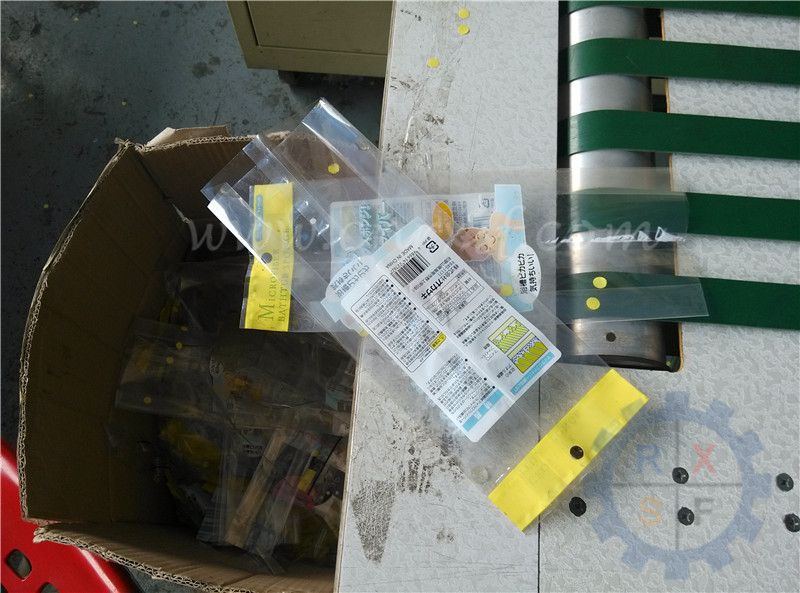

G. The final product - middle sealing & bottom sealing bags with customize punching:

5. Packaging and shipping

A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed :

B. The machine will be dismantled into several modular units to facilitate install it again:

C. Electronic systems and wearing parts use wooden cases:

6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.

(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.

(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.

(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.

(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.

(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.

(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.

(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;

B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
