Fully automatic PLC control vertical slitting machine for fireproof paper


IMG_20180825_102900
1.Main Technical Parameters

Model	1100
Material Width(mm)	1000
Unwinding diameter(mm)	600
Rewinding diameter(mm)	450
Inner diameter of unwinding&rewinding(mm)	52&76 (2&3 inch)
Slitting precision(mm)	<0.5
Minimum slitting width(mm)	30
Speed(m/min)	5-120
Slitting blades	Straight/ circular
Total power(kw)	4.5
size(M)	1.81.91.6
Weight(kg)	2100

2.Comprehensive Description

This model is specifically designed for materials that are thick and tear easily. Fireproof paper, generally a thickness of 1-2mm, easily broken. This material is easily torn if the tension is not absolutely balanced during line-progressing. Through precise mechanical control of the dynamic balance control, we can ensure that the slitting edge is evenly flat and without breakage.

3. Product Features

(1) Main drive adopts inverter control motor, the unwinding and rewinding uses PLC taper tension control to control the tension

(2) Photoelectric correction system with precision screw motor, slitting error of less than 0.5mm

(3) Driven by helical gears, the mechanical control of the blades holder is very precise and the noise is low

(4) For relatively small diameter coils, simple vertical design saves cost and takes up less space

(5) Safety performance meets EU CE standards, all electrical configurations use internationally renowned brands

4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.

2. We provide customized manufacture according to customer demand.

3. manufactured in accordance with European CE safety standards.

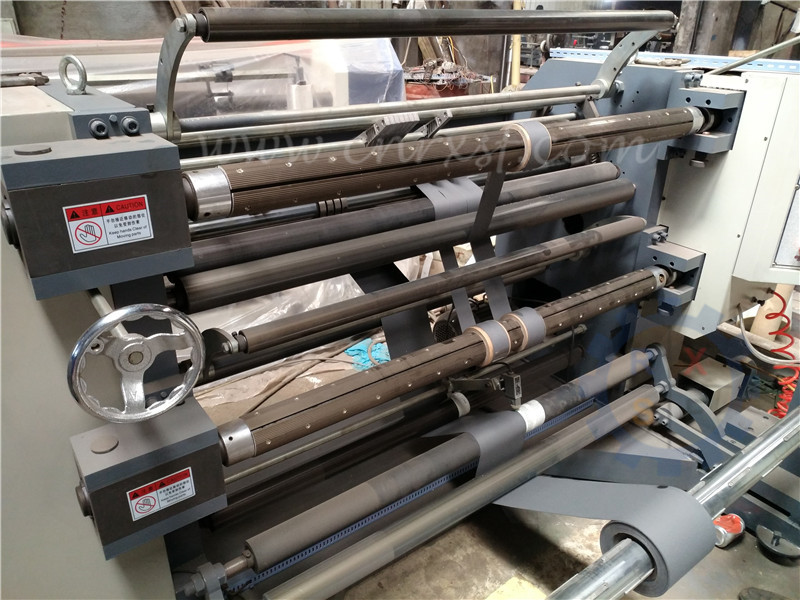

A. For relatively small diameter coils, simple vertical design saves cost and takes up less space:

IMG_20180825_102723

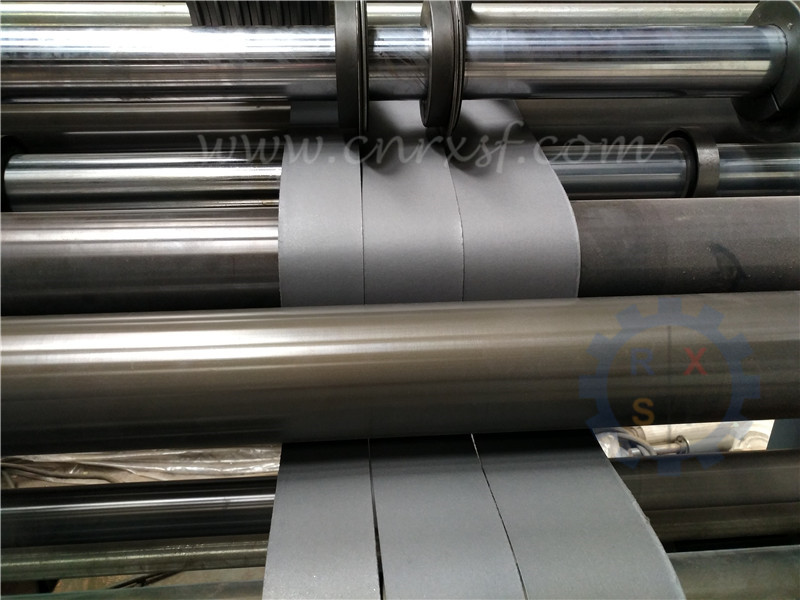

B. Photoelectric correction system with precision screw motor, slitting error of less than 0.5mm:

IMG_20180825_102436

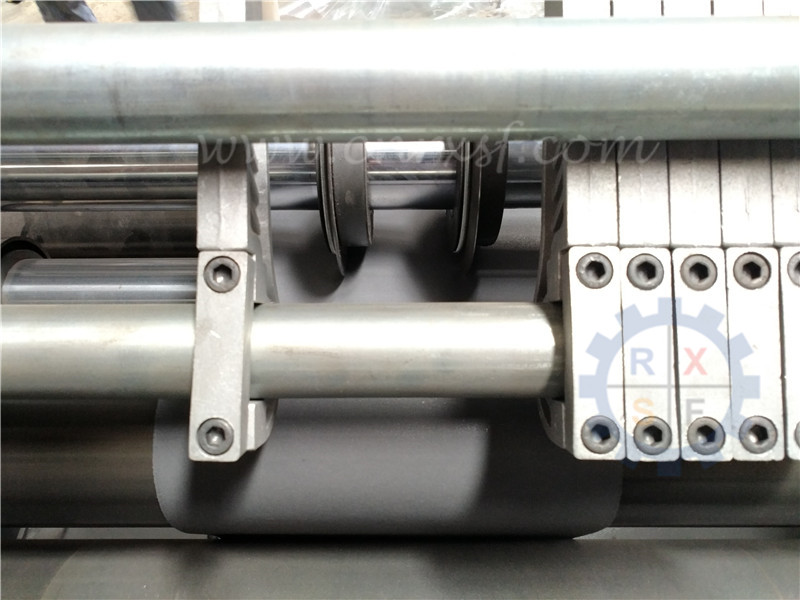

C. Driven by helical gears, the mechanical control of the blades holder is very precise and the noise is low:

IMG_20180825_102453

D. The round blade fits the base and can be fine-tuned to the optimum angle. The slitting edge is smooth and flat:

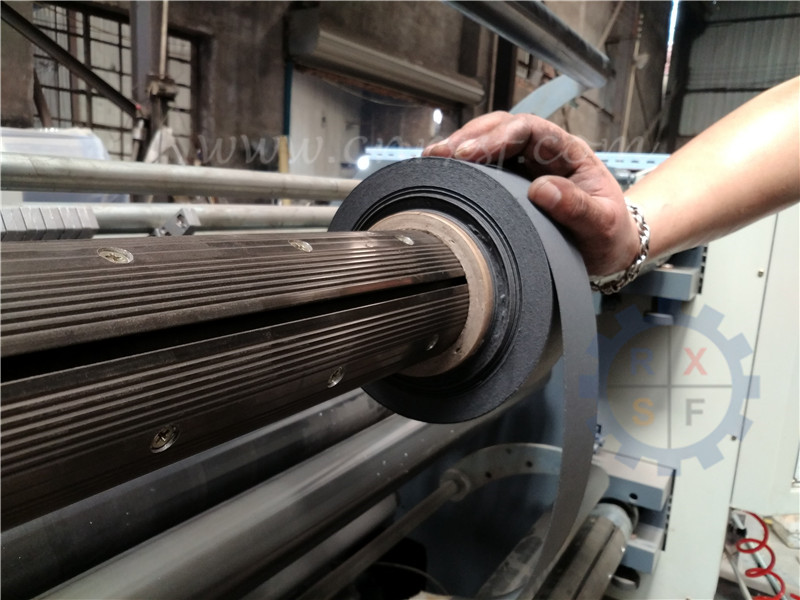

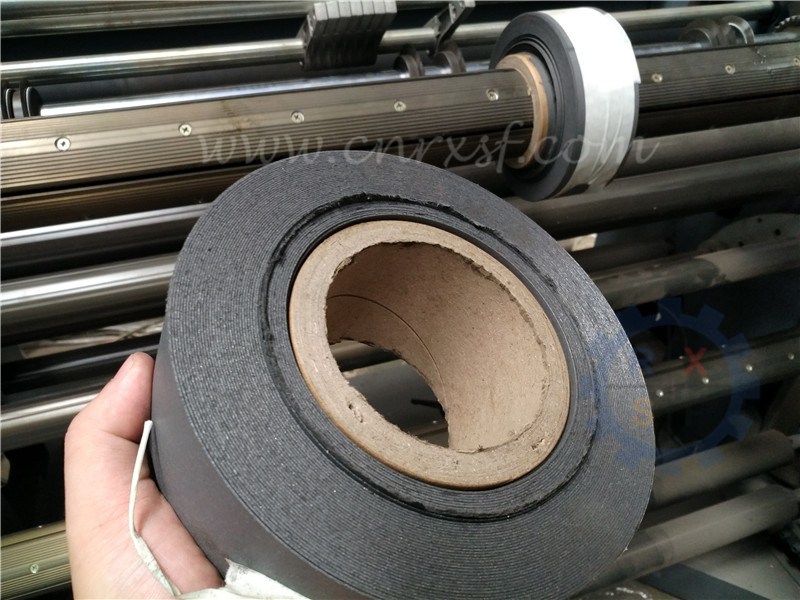

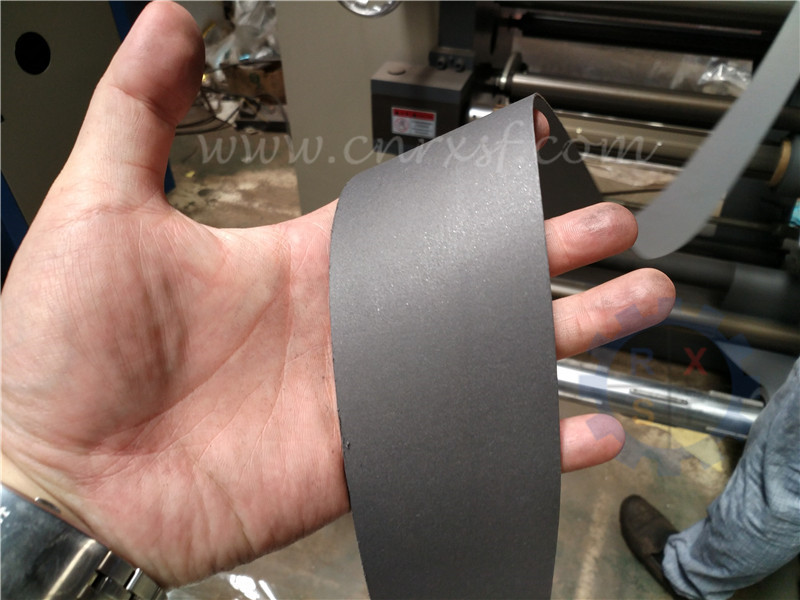

E. The edge of the roll is very flat, even better than the parent roll:

Through this link, to view the video of the machine running: https://youtu.be/nnNGmyxlewg

5. Packaging and shipping

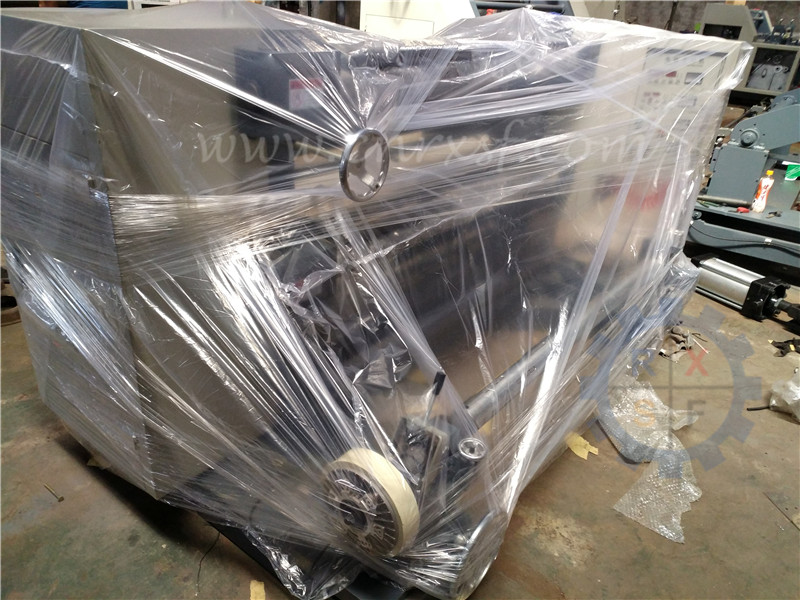

A. Plastic film for overall winding after applying anti-rust oil:

IMG_20180825_101222

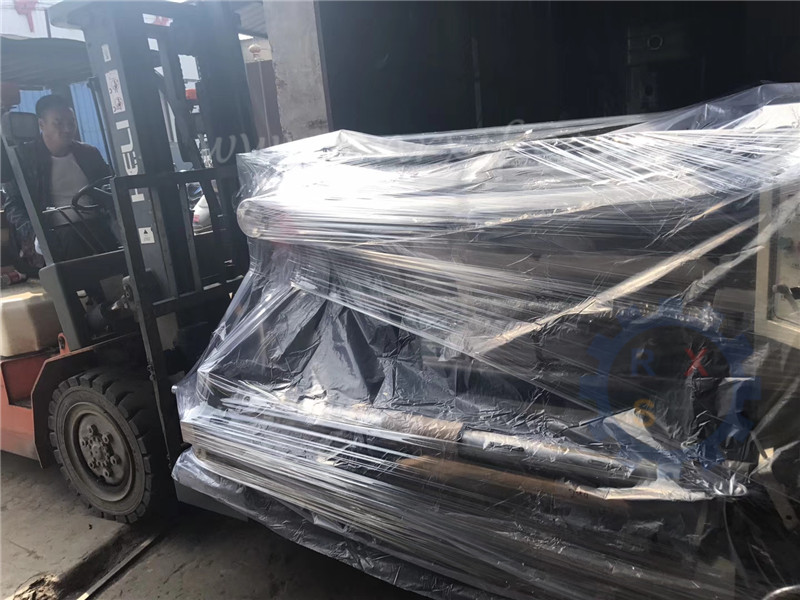

B. Loosen the anchor bolts, then overall transport using a forklift:

mmexport1525768880838

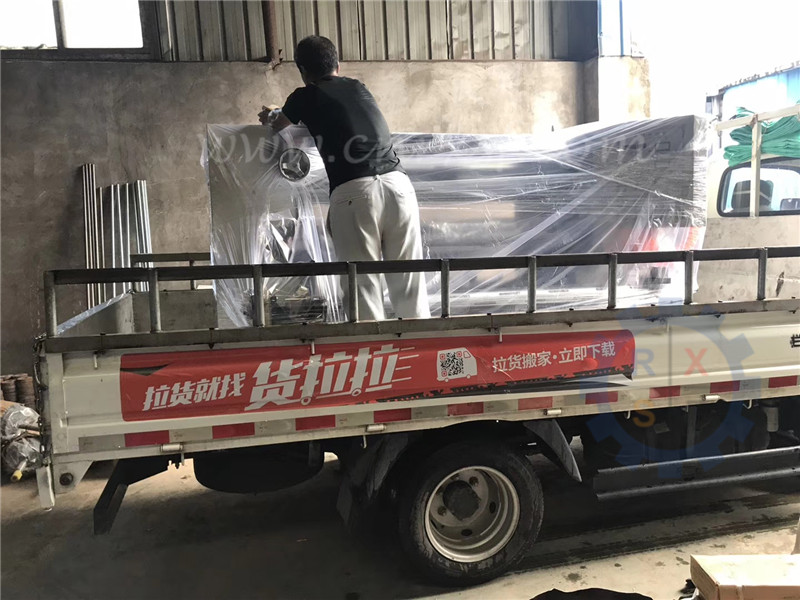

C. Put on the truck and start using wire fixing:

mmexport1535178870557
6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.

(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.

(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.

(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.

(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.

(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.

(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.

(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;

B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
