9 color rotogravure thermal transfer paper / film printing machine

Unwinding / rewinding:	800mm Rotating double station Independent unit
Printing:	120m/min for film Shaftless plate changing Heavy doctor blade 60m/min for thermal transfer paper & film
Control:	Fujikura tension Control 3 motor system & Yaskawa Inverter Kesai 2000C computer register system
Quantity:



Inquire Add to Basket

1.Main Technical Parameters

A. Model (9 colors 13 units)	1200	Remarks
B. Printing Cylinder Dia (mm)	100-380	External Dia
C. Printing Width (mm)	1230/1200	Max/Effective
D. Printing Speed (m/min)	10-120(Film/paper) 10-60(Thermal transfer paper/film )
E. Register Precision (mm)	≤0.10
F. Unwinding Dia (mm)	800	Duplex
G. Rewinding Dia (mm)	800	Duplex
H. Tension Control Range (kg)	2-50
I. Drying Method	Electric-heating
J. Total Power (kw)	140
K. Weight (kg)	21000
L. Overall Dimension (M)	14.52.92.7	Removable Transport

2.Comprehensive Description

Thermal transfer printing technology as an emerging technology, widely used in PP woven fabrics, woven cloth, textile fabrics, leather, Polyester, ABS, coated metal, wood printing. Process is divided into two steps: First, transfer film (paper) for dot printing, resolution of not less than 300dpi. Second, through sublimation transfer machine (heat and pressure) to achieve transfer printed pattern.
In the past decade, we have developed and improved through the years, already has a mature technology and rich experience. In our technical support, a number of factories at home and abroad to establish a complete production line of thermal transfer printing.

3. Product Features

(1) Duplex unwinding & rewinding, non-stop reloading

(2) Designed specifically for thermal transfer printing, dot printing resolution of 300dpi or greater

(3) Total printing unit (color) can be increased or decreased, not affect the registration accuracy.

(4) Automatic tension control, each printing unit has a separate web guide device

(5) Optional equipped with central surface curl rewinding unit, if width of more than 1400mm,

(6) PLC control, also computer color register and video detection systems can be optional

(7) Unique imprint technology, can be directly printing on woven material

4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.

2. We provide customized manufacture according to customer demand.

3. manufactured in accordance with European CE safety standards.

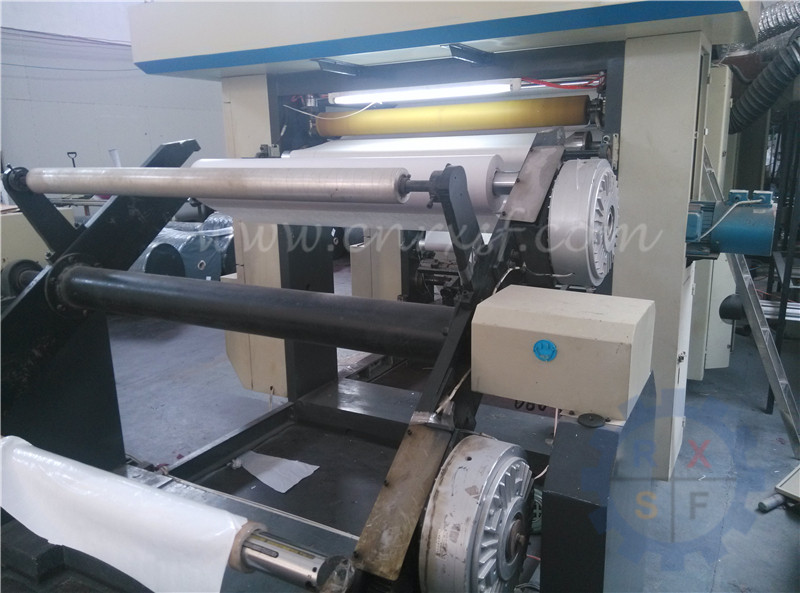

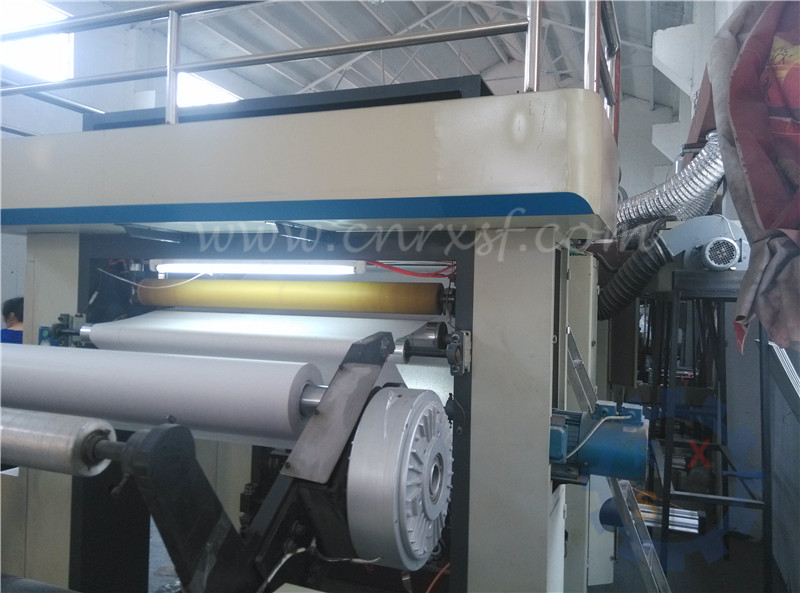

A. Unwinding & rewinding equipped with 800mm diameter rotary duplex, independent motor control and good synchronization :

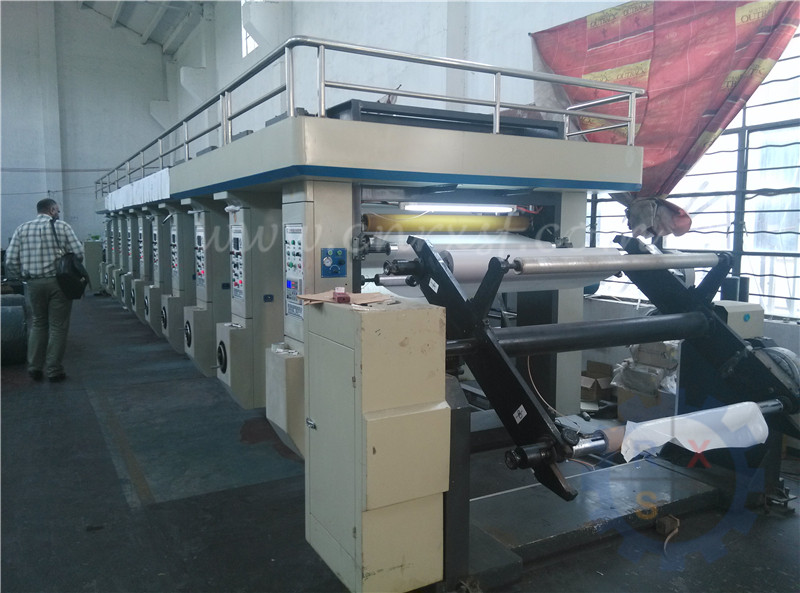

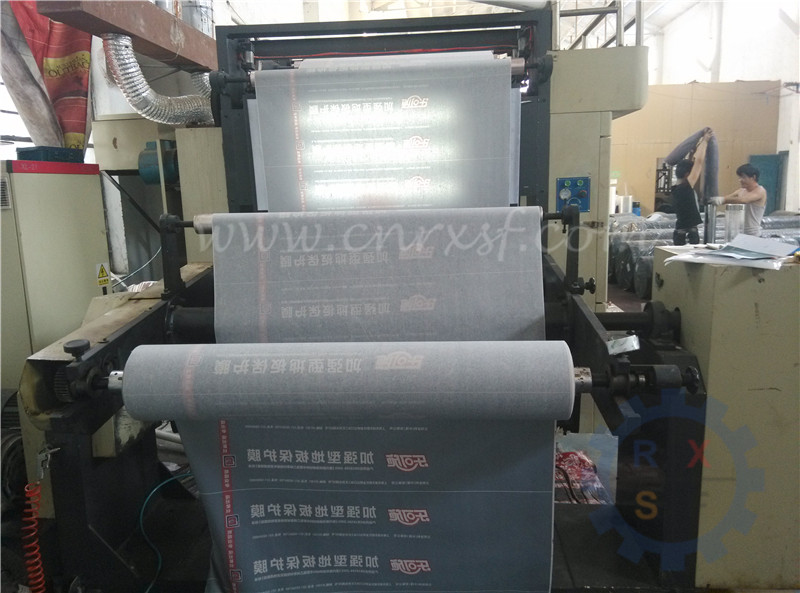

B. Each printing unit equipped with a separate registration system, there is no cumulative error:

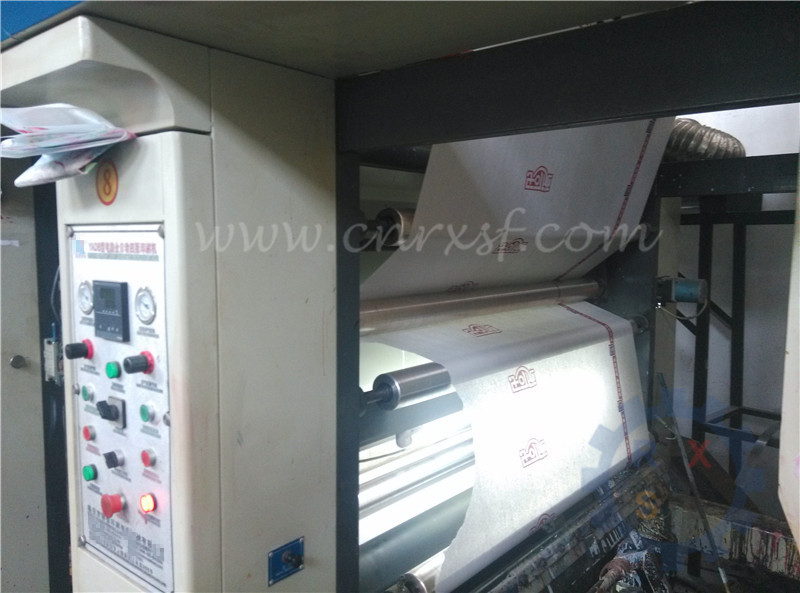

C. Rewinding motor adopt (Yasukawa) inverter control, with detection light box and high speed video camera systems:

D. Thermal transfer paper and the non-woven fabric posttransfer:

E. High-resolution thermal transfer, 2.7cm size dimensional code can be identified by Iphone 4S:

F. Printing color code 20 times magnification detection, accuracy better than 0.10mm:

5. Packaging and shipping

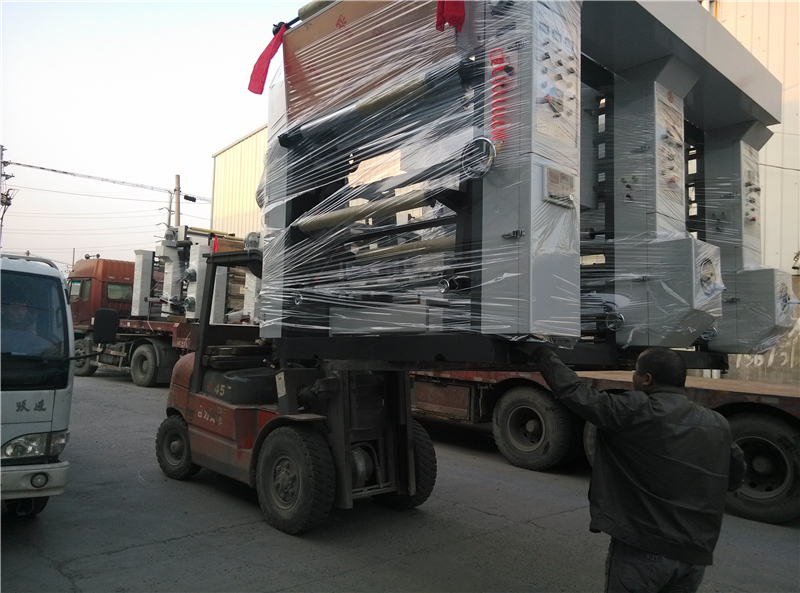

A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed :

B. Rubber roller, printing plate roller and spare parts, using felt and wooden box:

C. Electronic systems and wearing parts use wooden cases:

6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.

(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.

(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.

(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.

(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.

(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.

(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.

(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;

B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
