700mm surface rolling slitting and rewinding machine


1.Main Technical Parameters

Model	700	1100	1300	Remark
Material Width(mm)	650	1050	1250	Effective
Unwinding diameter(mm)	600	600	600	Customize
Rewinding diameter(mm)	450	450	450	Customize
Inner diameter of unwinding&rewinding(mm)	26-76 (1-3 inch)	26-76 (1-3 inch)	26-76 (1-3 inch)	Customize
Slitting precision(mm)	<0.5	<0.5	<0.5
Minimum slitting width(mm)	5	5	5
Speed(m/min)	10-160	10-160	10-160
Slitting blades type	Straight/ circular	Straight/ circular	Straight/ circular
Total power(kw)	2.5	2.8	2.8
size(M)	1.2×1.6×1.1	1.6×1.6×1.1	1.8×1.6×1.1
Weight(kg)	1800	2200	2600

2.Comprehensive Description

Surface rolling slitting and rewinding machine is especially for 5mm-50mm range of flexible packaging materials, with high-speed & precision slitting and rewinding. This is an ideal machine for slitting rolling materials of small scale such as BOPP,PET,seals adhesive tape,cigarette case seals. Different from the common central shaft rewinding, the central surface coiling, rewinding shaft is controlled by the magnetic clutch. Even for 5mm wide BOPP, still able to ensure a tight rewinding. Through our years of improvement, details of the this model design have been almost perfect, to maximize ensure high quality and easy operation.

3. Product Features

(1) Cast steel structure, compact design

(2) Automatic meter counter (support automatic stop when reach the setting meters), failure alarm and waste edge collection

(3) Magnetic brake unwinding, magnetic clutch rewinding, the main motor speed control by the inverter

(4) Automatic photoelectric web guide, and automatic tension control

(5) Integrated microcomputer control, easy to operate, saving manpower

4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.

2. We provide customized manufacture according to customer demand.

3. manufactured in accordance with European CE safety standards.

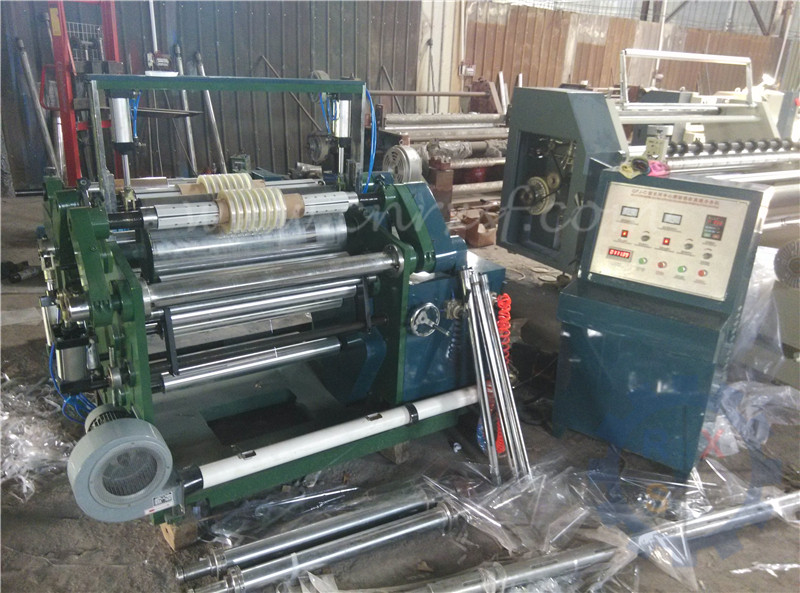

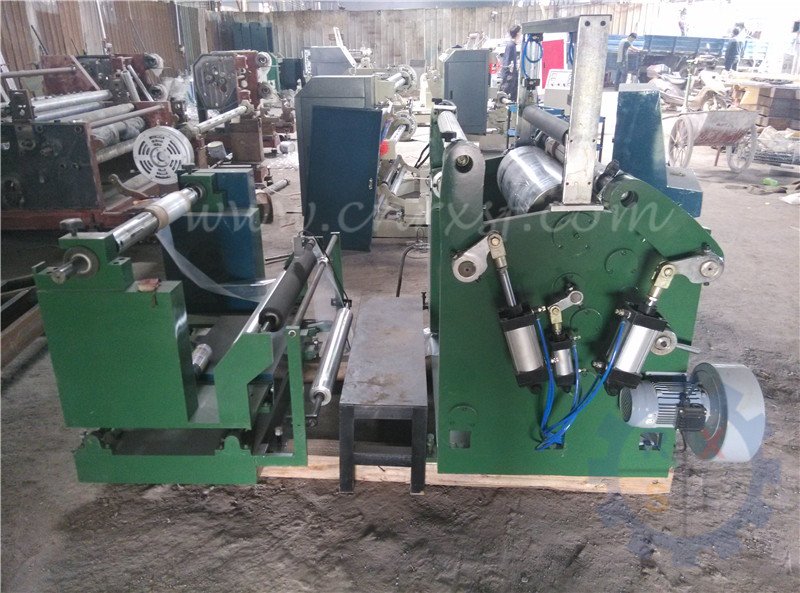

A. Cast steel structure, compact design, easy to operate:

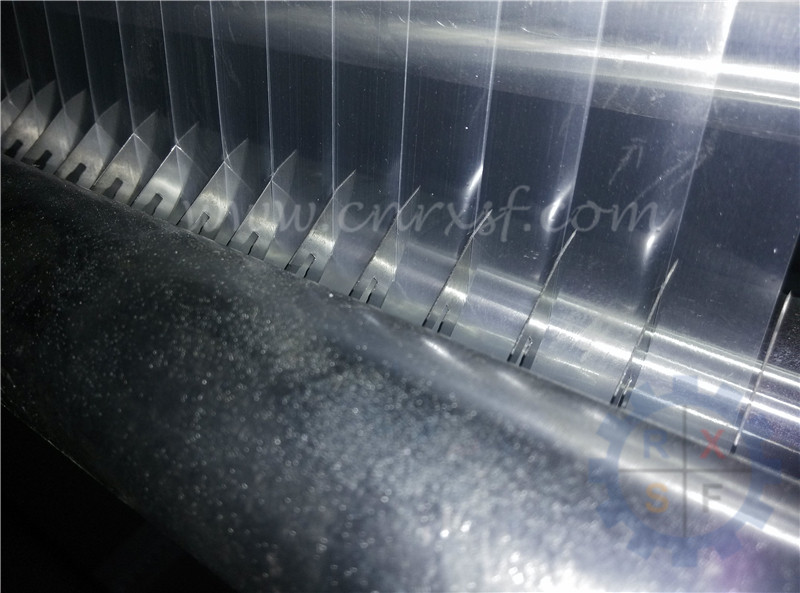

B. Movable tool holder, supports straight blade / circular blade / special-shaped blade:

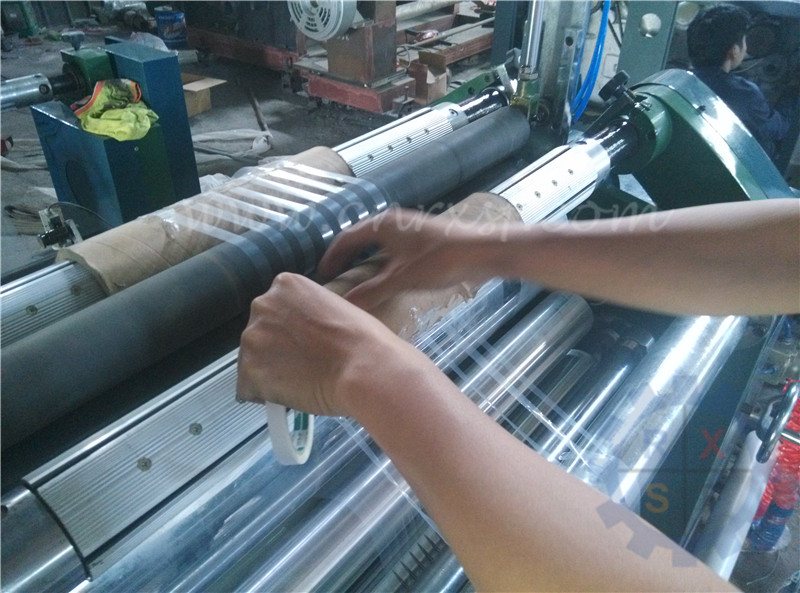

C. Increasing the pressure cylinder, make easy loading to quickly change roll:

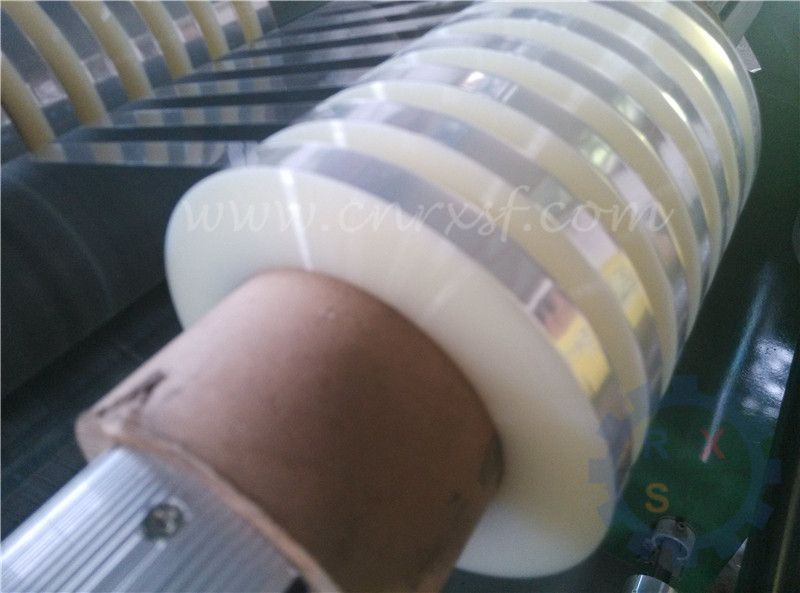

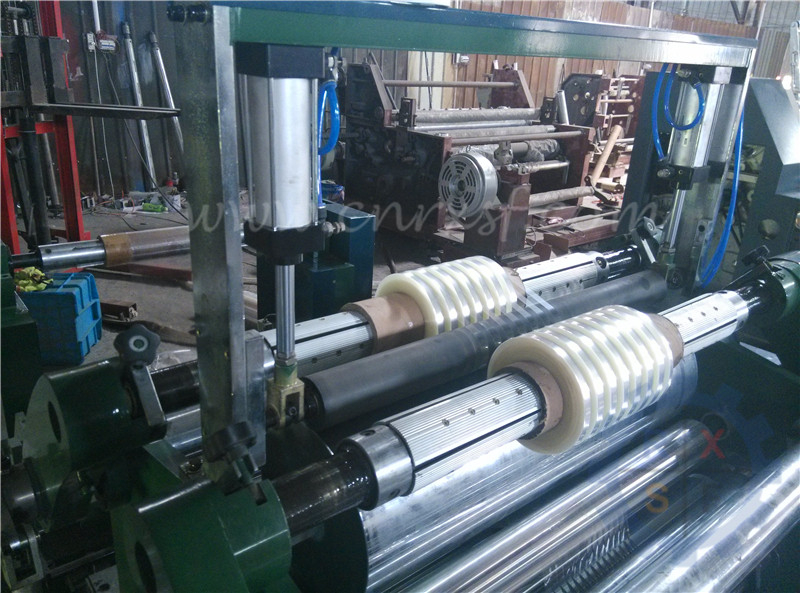

D. High precision slitting and surface rolling rewinding to ensure high-quality products:

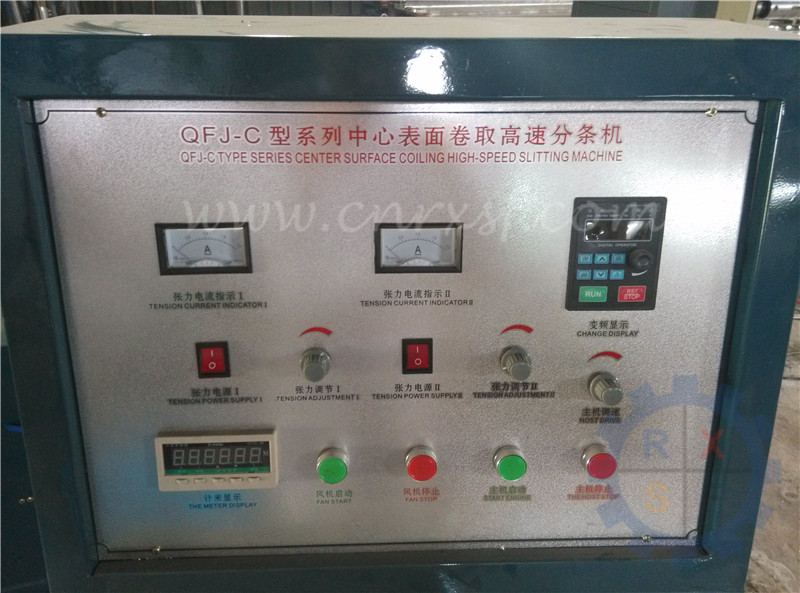

E. Speed, tension and meter counter are automatic and can be set:

Through this link, to view the video of the machine running:

https://youtu.be/sPzgdsESyCs

https://youtu.be/PSeUxm3ffC4

5. Packaging and shipping

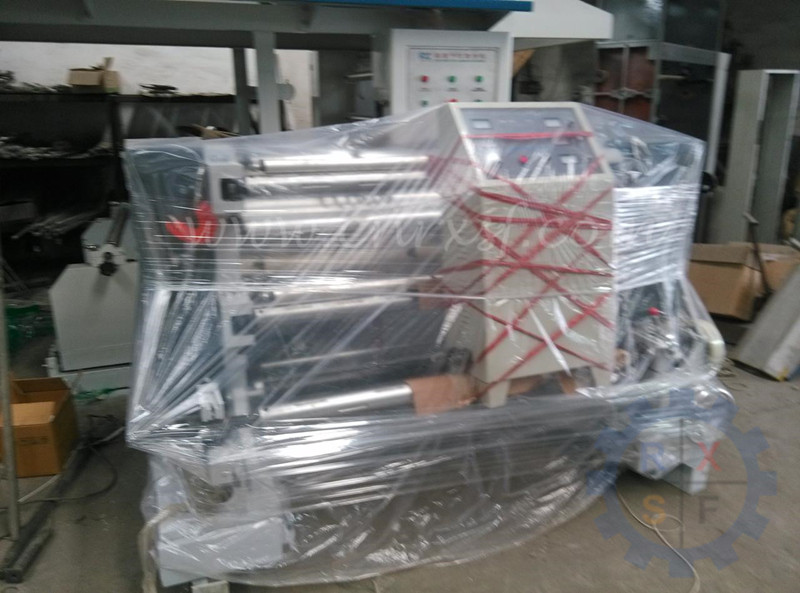

A. PE stretch film wrapping, corrugated cardboard protection, steel wire fixed :

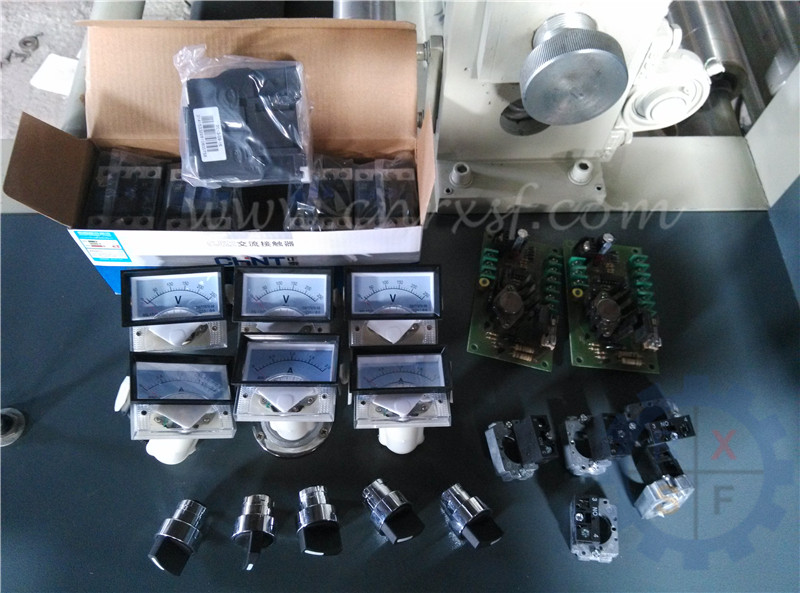

B. Spare parts and wearing parts using separate packages:

C. We offer wooden case or wooden pallets packaging, according to customer requirements:

6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.

(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.

(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.

(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.

(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.

(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.

(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.

(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;

B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
