1.Main Technical Parameters
A. Model (5 colors 9 units) | 2000 | Remarks |
B. Printing Cylinder Dia (mm) | 100-380 | External Dia |
C. Printing Width (mm) | 2030/2000 | Max/Effective |
D. Printing Speed (m/min) | 40-60
| |
E. Register Precision (mm) | ≤0.15 | |
F. Unwinding Dia (mm) | 600 | Duplex |
G. Rewinding Dia (mm) | 1200 | Surface coiling rewinding |
H. Tension Control Range (kg) | 2-30 | |

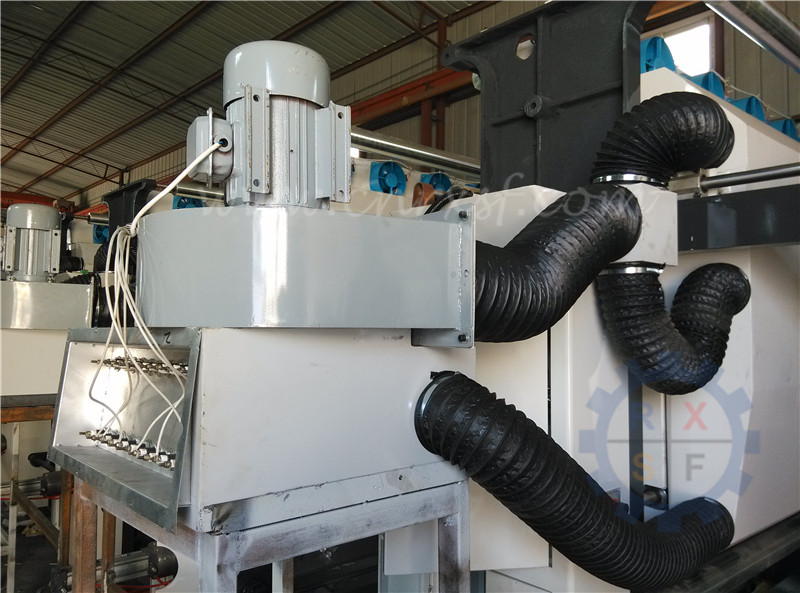

I. Drying Method | Circulating air | |
J. Total Power (kw) | 140 | |
K. Weight (kg) | 18000 | |
L. Overall Dimension (M) | 14.5*3.8*2.75 | Removable Transport |
2.Comprehensive Description

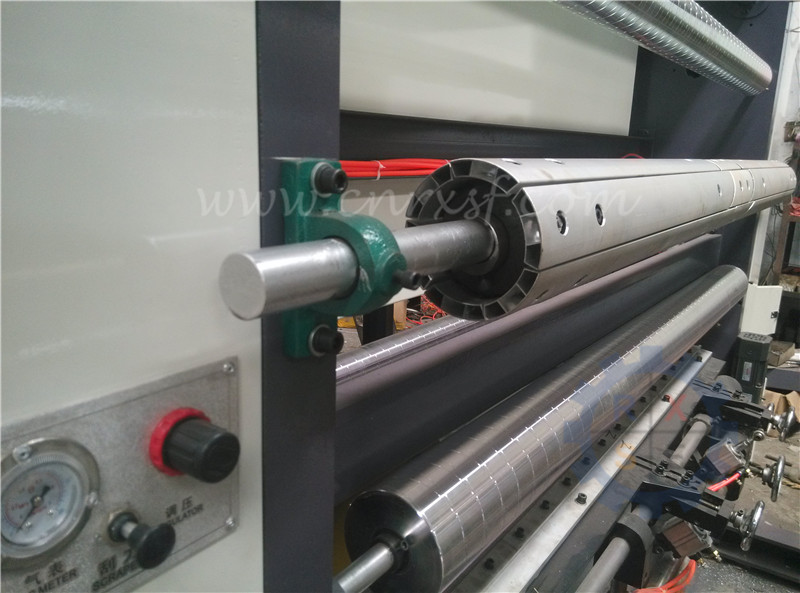

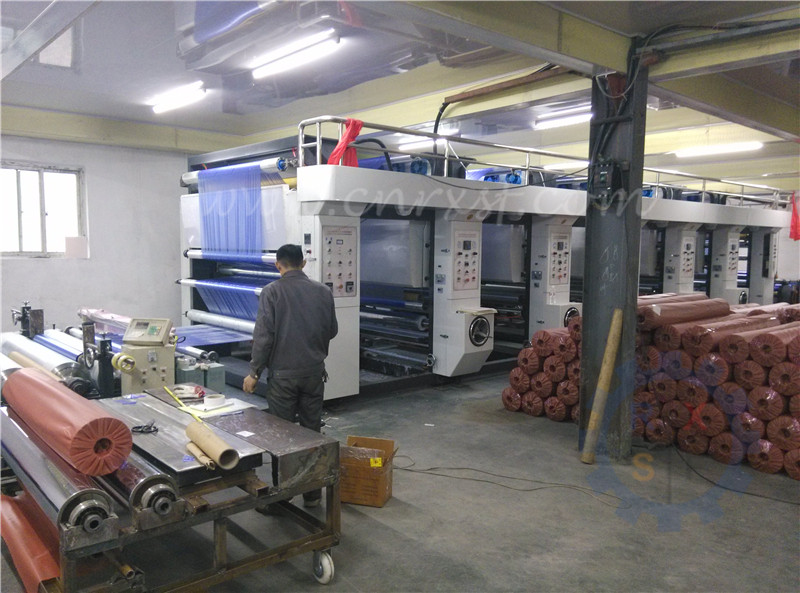

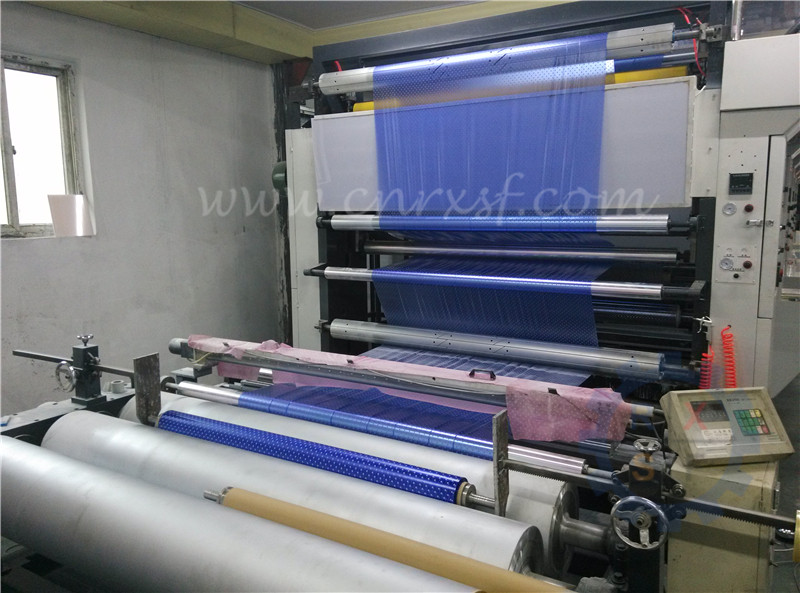

2000mm wide format rotogravure printing machine is custom models, specially designed for thick PVC printing. It equipped with central surface coiling rewinding, spring roller flattening, heavy doctor blade. Using for tablecloths, shower curtains and other PVC composite materials printing.
3. Product Features
