2000mm wide format laminated textile slitting and rewinding machine


IMG_20180904_200330 1.Main Technical Parameters

Model	2100
Material Width(mm)	2000
Unwinding diameter(mm)	600
Rewinding diameter(mm)	650
Inner diameter of unwinding&rewinding(mm)	52&76 (2&3 inch)
Slitting precision(mm)	<1.0
Minimum slitting width(mm)	30
Speed(m/min)	20-100
Slitting blades	Circular
Total power(kw)	6.5
size(M)	2.82.61.6
Weight(kg)	2600

2.Comprehensive Description

This is a custom model, specially designed for a wide-width of textiles, TPU leather, cloth fabrics and so on. It uses a unique unwinding and web guide device, increases blade pressure, adjusts winding tension, to achieve a smooth slitting of the thicker textile fabric with tight and tight rewinding.

3. Product Features

(1) One machine is multi-purpose, two unwinding units are used for rewinding and slitting and rewinding functions respectively

(2) Horizontal structure, specially designed for wide and large rolls of raw materials

(3) Special wide-sensing area optoelectronic web guide system for cloths and fabrics with irregular edges

(4) The rewinding adopts magnetic powder tension control, automatic meter counting, and can set the length to stop

(5) The whole machine adopts frequency conversion control, which is easy to operate, simple in structure and saves manpower

4. Details and photos

1. Every detail will be described in detail by text and pictures, as confirmation.

2. We provide customized manufacture according to customer demand.

3. manufactured in accordance with European CE safety standards.

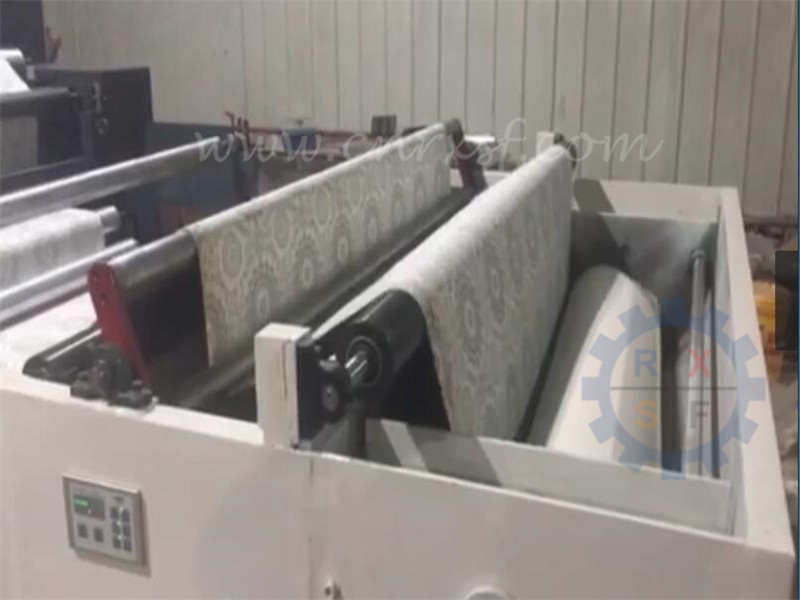

A. Custom grooved unwinding unit for shaftless roll material. The next step can be rewinding, and also can be slitting and rewinding:

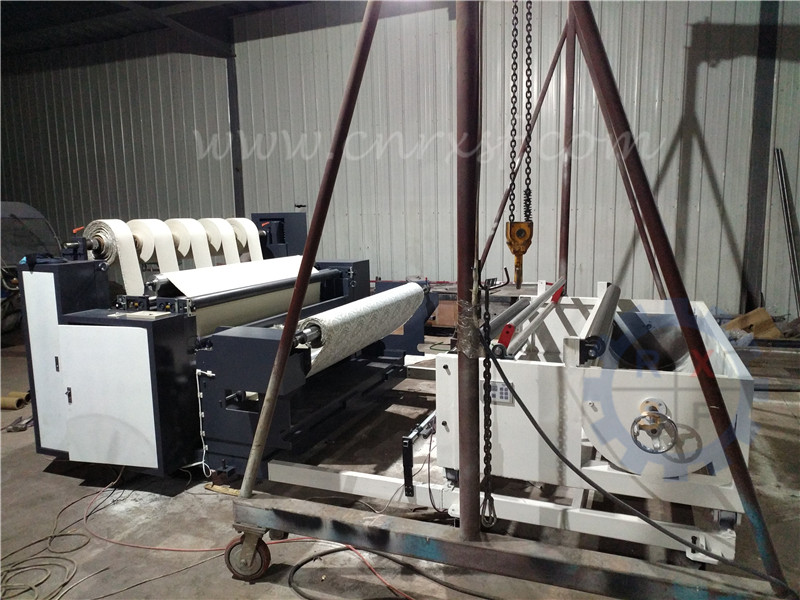

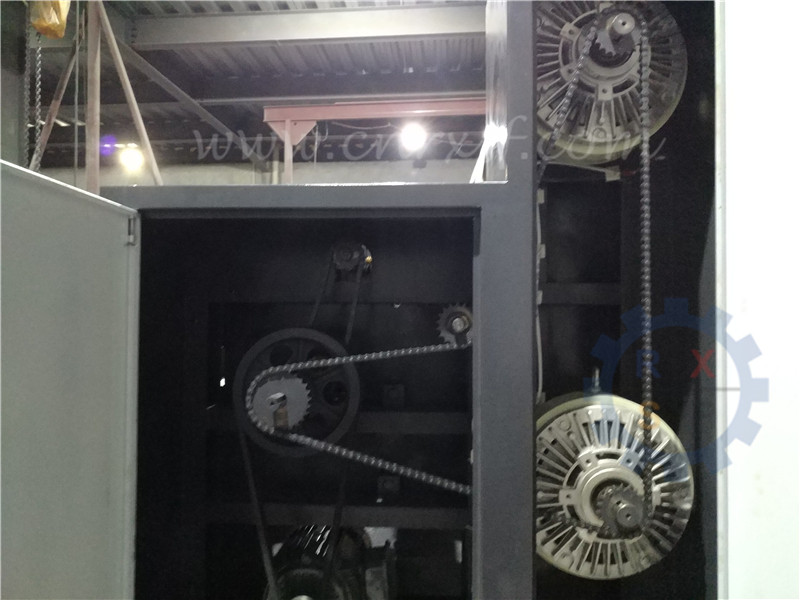

B. The second unwinding unit is specially used for the roll material with paper core, and the magnetic powder is used to control the tension:

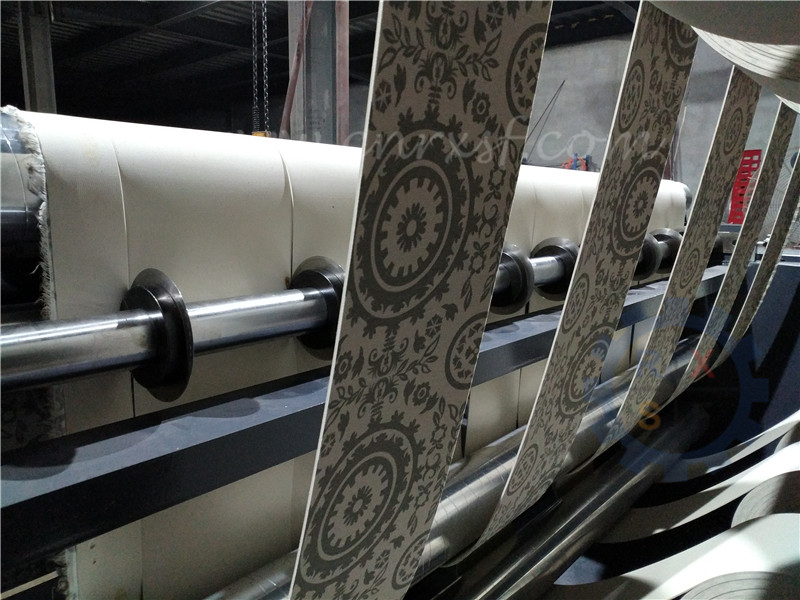

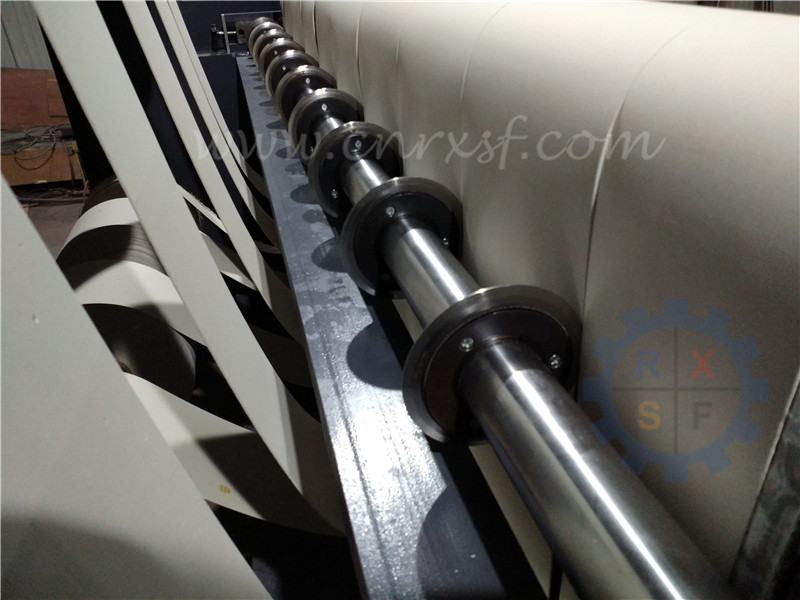

C. The angle of the round blade with the base are specially designed for a thick laminated textile material, ensure a smooth slitting edge:

IMG_20180904_200504

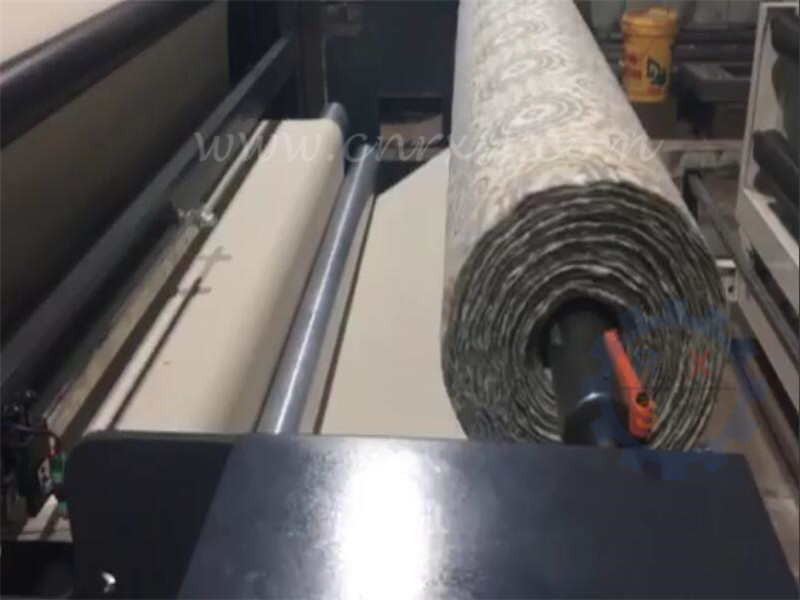

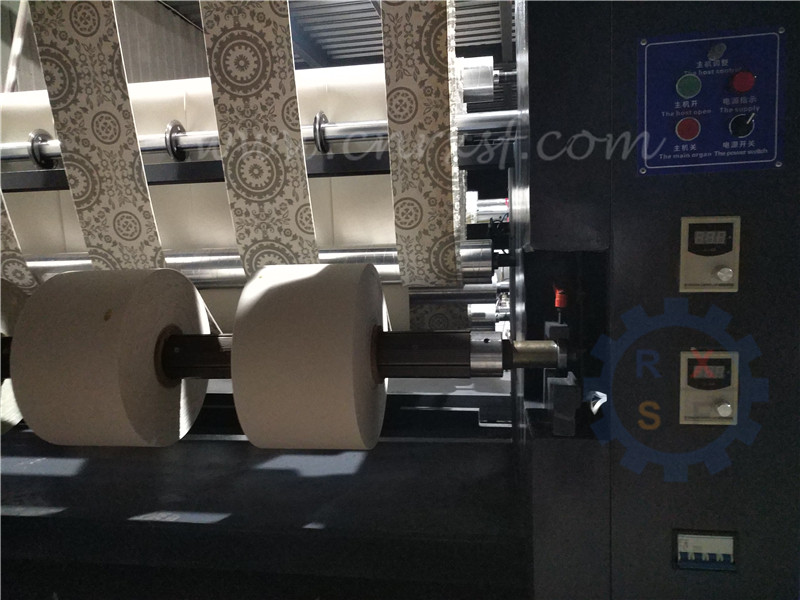

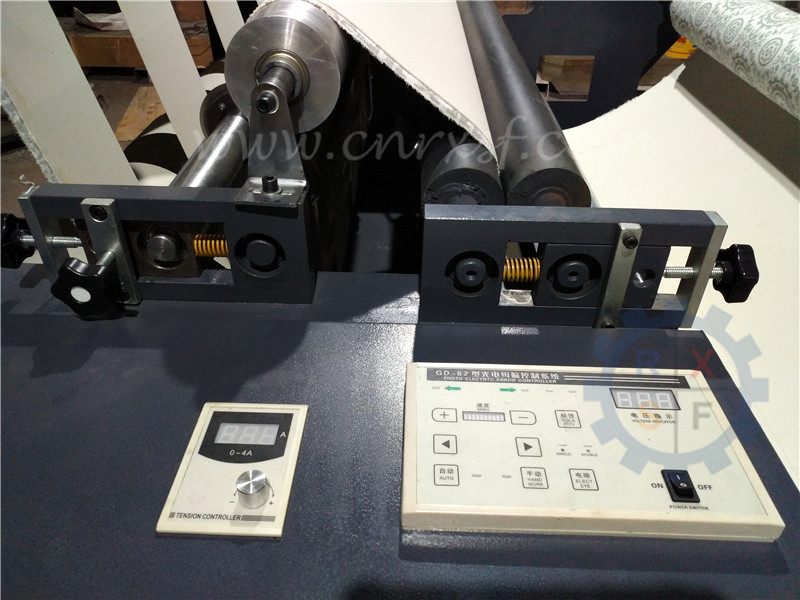

D. Photoelectric web guide, automatic / manual tension control, automatic meter, saving manpower and easy to operate:

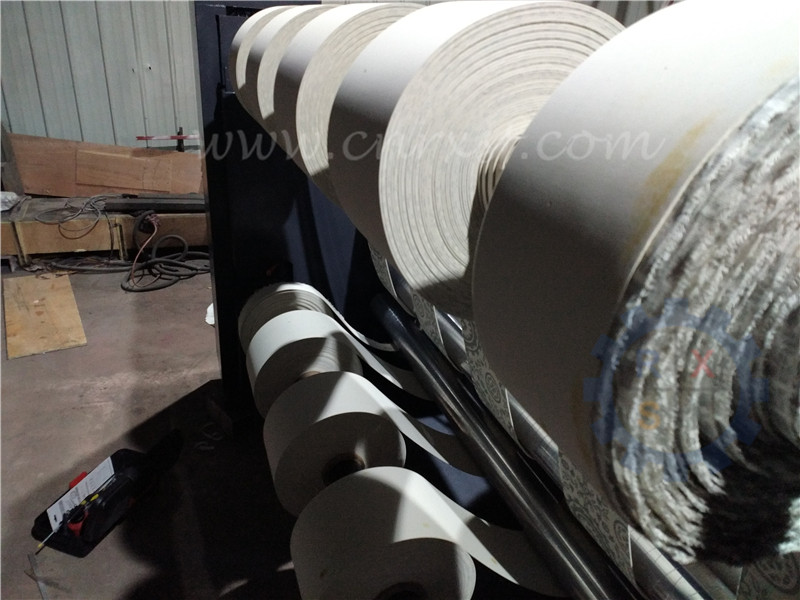

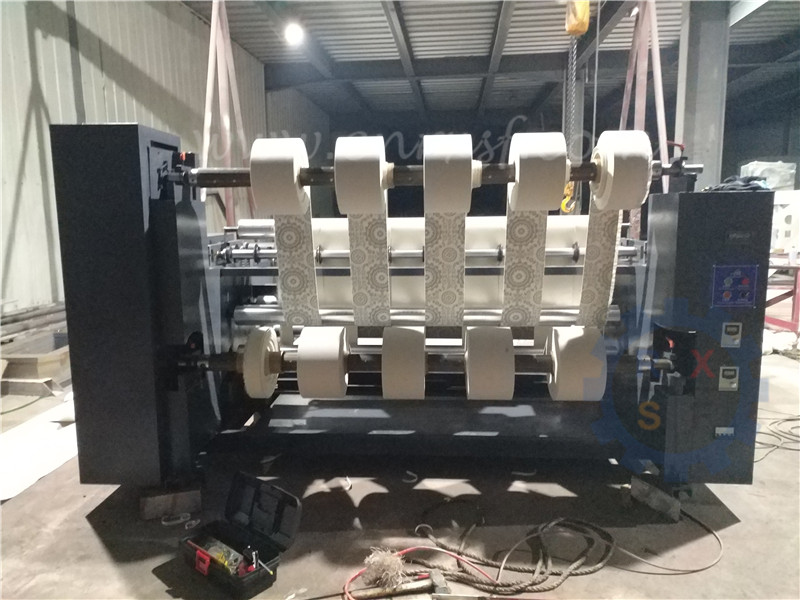

E. The rewinding is smooth and compact, even if it reaches a large diameter, the edge is flat:

Through this link, to view the video of the machine running: https://youtu.be/MkktMgAcJKA

5. Packaging and shipping

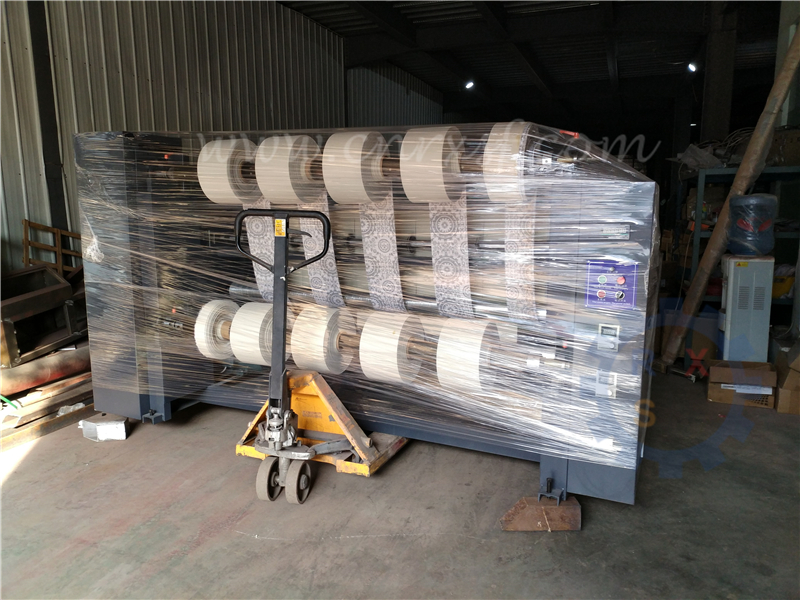

A. After applying anti-rust oil, using plastic film for overall winding:

IMG_20180906_073648

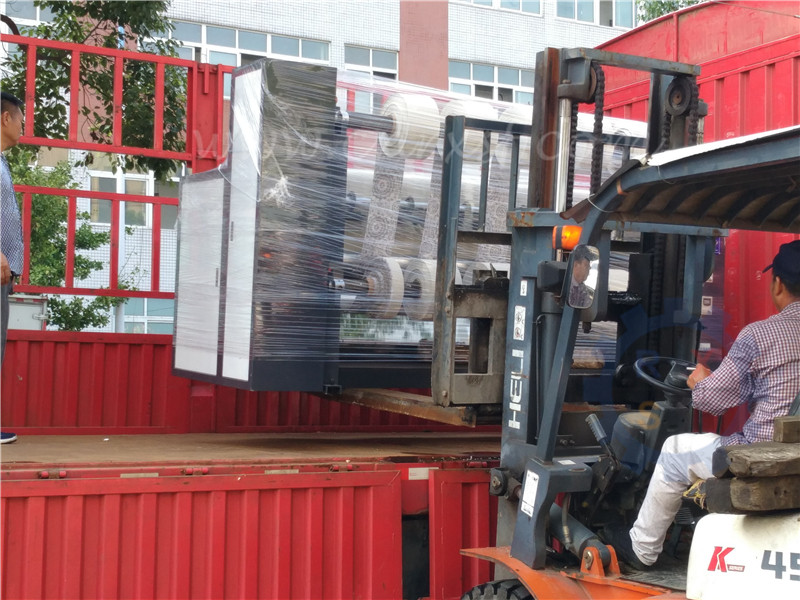

B. Loosen the anchor bolts, then overall transport using a forklift:

mmexport1525768880838

C. Put on the truck and using wire fixing:

IMG_20180906_080843

6. Trading terms and after sales service

(1) We sold machines provide at least 360 days of quality assurance, during the warranty period, we assume full responsibility for the quality.

(2) The following three cases: beyond the quality guarantee period, improper operation and man-made damage, we still provide lifetime maintenance & guidance & commissioning of after-sales Service. However, engineers need to charge service fees.

(3) The non-standard machines that we manufacture according to customer needs, for non-standard parts, we offer customization and maintenance of lifetime, but the cost may be slightly higher than the standardized parts.

(4) Trading in FOB Term; the quoted price include the full price of the machine, transported to Ningbo Port fees, customs fees. Not include shipping and insurance charges. We can handle shipping on behalf of the purchaser, the cost paid separately by the purchaser.

(5) Earthquake, shipwrecks, war and other force majeure could be the grounds of exemption for delayed or cannot fulfill. Correspondingly, the other party's corresponding liability is also exempt.

(6) Installation and commissioning are part of after-sales service, at no additional charge. If the customer requests in writing, we will send qualified and experienced engineers. The fees borne by the customer, including but not limited to: transportation costs, accommodation costs, $ 100 per day in subsidies.

(7) Under any circumstances, customer information and contract details will be kept strictly confidential. Unless the court order or the consent of the client.

(8) Matters not covered in this document, refer to "United Nations Convention on Contracts for the International Sale of Goods (1980)" the relevant provisions solution. Both China and the United States are parties to the Convention.

7. Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the machine;

B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS:
